Electric gripper Z-ERG-20C

soft2-jawfor industrial robots

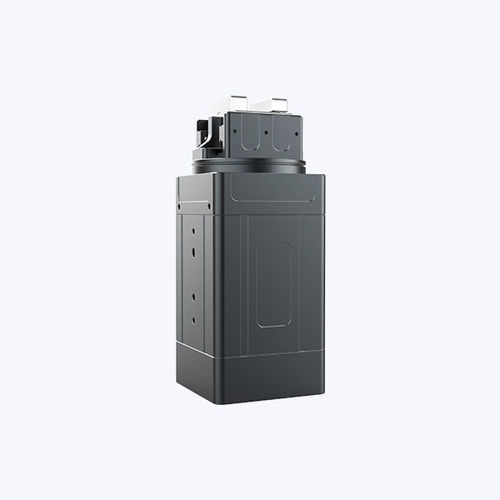

Multiple Applications - Support limitless rotation and relative rotation - High Cost-Performance No Slide-rings, low maintenance cost - Accurate Control Its rotation speed and clamping force can be controlled accuratelly. Long Lifespan Tens of million cycles,beyond of air gripper Controller is Built-in Occupying small room, Convenient to Integrate Control Mode Support Modbus Main Line and I/O Control HITBOT Z-ERG-20C rotation electric gripper, has integrated servo system, its size is small,outstanding performance. The time of open/close is just 0.3s,its speed, clamping force, bit can be accurately controlled by Modbus, it supports soft clamping, being able to clamp fragile objects, such as bean curd, tube and egg, etc. The repeatability of the electric gripper is ±0.02mm, by accurate force and positioning control, the electric gripper can be more stable to complété the tasks of clamping and rotation. The electric clamping is simple configuration, to use the communication protocol of digital I/O, just need one cable to connect ON/OFF, to be perfect compatible with PLC main control system.
