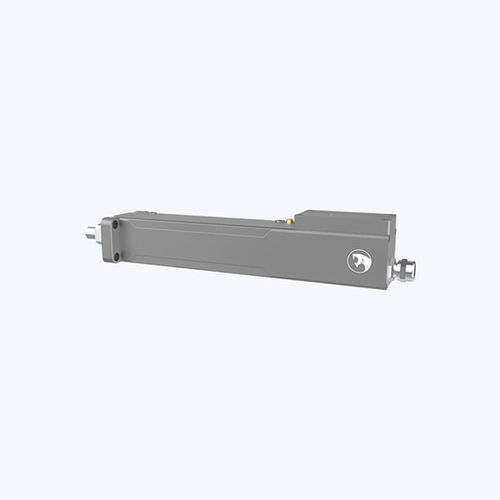

Electric actuator Z-Mod-EP-42RS-100

linear24-voltIP40

The EP-42RS-100 Micro Electric linear actuator has got updated on the traditional form, it has 100mm lead or 2mm lead, it is to adopt the structure of Integrated embedded guide rail, it has integrated servo motor, servo driving and controller module. By the control software of HITBOT STUDIO, the dynamic position can be preset, to define the position coordinate, opération speed, accélération, décélération and position width for various of points. By the signal of PIO, the micro electric linear actuator can be controlled easily. The micro electric linear actuator of 42RS-100 is to adopt the design of driving and control intégration, no need exterior driving, by the power cable and communication cable, the electric linear actuator can be controlled. It has integrated decode, compatible with internai origin and soft limit control. The product load capacity is 2KG for horizontal, 1KG for vertical, repeatability is ±0.02mm, its max speed is 130mm/s, the max pushing force is 180N, the précision of pushing rod without rotation is ±1.5°. It is to support I/O, puise control, it can switch easily on the production equipment with différent control modes, no need adapter plate, driving and control intégration, it is simple and flexible to deploy.
