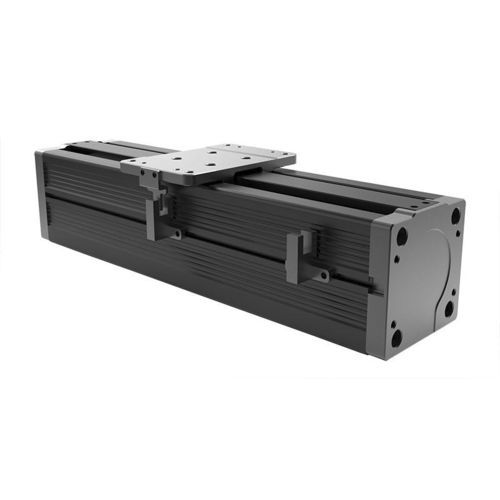

Electric actuator Z-Mod-ST-66SSlinearscrewaluminum
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- screw
- Material
- aluminum
- Voltage
- 24-volt
- Applications
- for robots
- Other characteristics
- precision, integrated, small, powerful
- Stroke
680 mm
(26.772 in)- Force
100 N
- Speed
120 mm/s, 180 mm/s
- Operating Temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Repeatability
0.03 mm
(0.0012 in)
Description
The Z-mod robotic actuator is beautiful in appearance, highly integrated, small, and powerful. It simplifies the installation steps.
ST series electric actuators have many advantages.
Advantages:
The screw series controller is built-in, and the belt series controller is external.
It has a base level of high precision.
Nuts have zero backlash.
Product Features:
With the ratio of the maximum stroke to the total length under the same effect stroke, the total length is shorter.
It is more suitable for occasions such as small load, high speed, and small space.
It’s tight enough that neither the screw nor the timing belt is exposed.
VIDEO

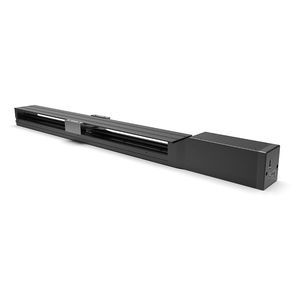

Other Huiling-tech Robotic Co., Ltd. products
