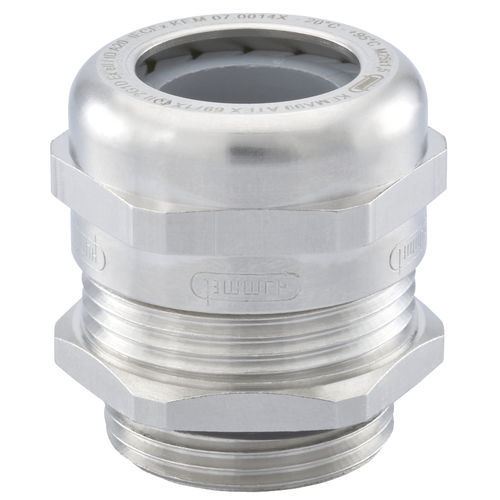

Nickel-plated brass cable gland HSK-M-EMC-PVDF-ExEMC-shieldedIP68IP69K
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass
- Protection level
- EMC-shielded, IP68, IP69K, chemical-resistant
- Other characteristics
- high-temperature
- Cable diameter
Max.: 44 mm
(1.73 in)Min.: 2 mm
(0.08 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: -20 °C
(-4 °F)
Description
EMC-compatible cable gland for chemical and high temperature applications
Clamping insert - PVDF
Ex-protection level - II 1D Ex ta IIIC Da,II 2G Ex eb IIC Gb
Material o-ring - FKM
NEMA type rating - 4,4X,6
Protection class - IP 68 – 10 bar, IP 69 K
Seal - FKM
Variant - PG, NPT
