Nickel-plated brass cable gland HSK-MZ-Ex-d
IP68IP69Kexplosion-proof

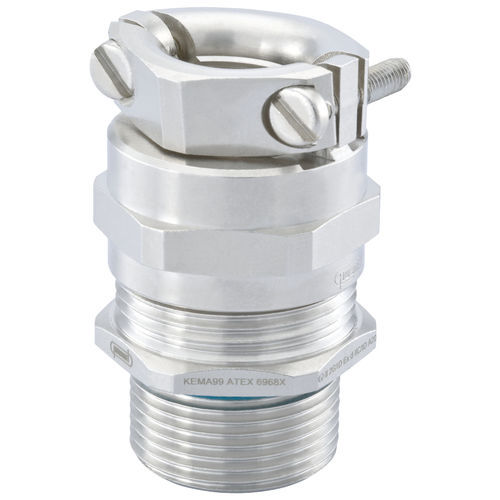

Nickel-plated brass cable gland - HSK-MZ-Ex-d - HUMMEL - IP68 / IP69K / explosion-proof
Nickel-plated brass cable gland - HSK-MZ-Ex-d - HUMMEL - IP68 / IP69K / explosion-proof
Nickel-plated brass cable gland - HSK-MZ-Ex-d - HUMMEL - IP68 / IP69K / explosion-proof - image - 2
Add to favorites
Compare this product
Go to the HUMMEL website for more information

Characteristics

Material
nickel-plated brass
Protection level
explosion-proof, IP68, IP69K, for hazardous areas
Other characteristics
metric, strain relief
Cable diameter

Max.: 32 mm
(1.26 in)

Min.: 3 mm
(0.12 in)

Operating temperature

Max.: 105 °C
(221 °F)

Min.: -60 °C
(-76 °F)

Description

Cable gland for hazardous locations „d“ with additional strain relief made of nickel plated brass Clamping insert - Polyamide V0 according to UL 94 Ex-protection level - II 1D Ex ta IIIC Da, II 2G Ex db IIC Gb Material o-ring - FKM Seal - FKM

Catalogs

Go to the HUMMEL website for more information

Other HUMMEL products

Ex d cable gland metal
