brass cable gland / IP66 / IP67 / IP68
EXIOS series

Add to MyDirectIndustry favorites
Compare this product
brass cable gland / IP66 / IP67 / IP68 brass cable gland / IP66 / IP67 / IP68 - EXIOS series
  • Brass cable gland / IP66 / IP67 / IP68
{{requestButtons}}

Characteristics

  • Material:

    brass

  • Protection level:

    IP66, IP67, IP68, explosion-proof, for hazardous areas

  • Other characteristics:

    straight

  • Operating temperature:

    Max.: 105 °C (221 °F)

    Min.: -60 °C (-76 °F)

Description

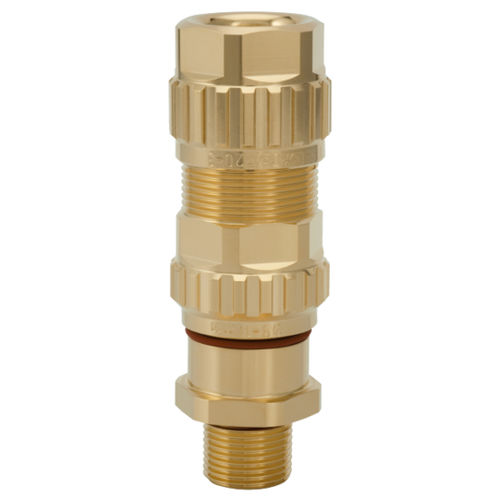

The EXIOS +Standard features a nickel-plated brass material with a silicone made seal and VMQ. The armour or the screen has metallic coating. The product is II 2G Ex de IIC Gb and II 1D Ex ta IIIC Da certfied. The clamping insert is PA 6. The twofold seal on the external and internal wire sheath is effected when demonstrated HUMMEL bracing framework.

These wire glands for armored resp. strengthened wires are intended for utilization in supposed "Hazardous Areas" and are outfitted with some new and imaginative gimmicks. EXIOS has as of now been confirmed according to the most recent Iecex and ATEX benchmarks.

The new EXIOS dependably meets these prerequisites. With 9 sizes and joining strings from M16 to M75 and 3/8" NPT to 3" NPT, HUMMEL offers an inventive project for all normal wire distances across.
