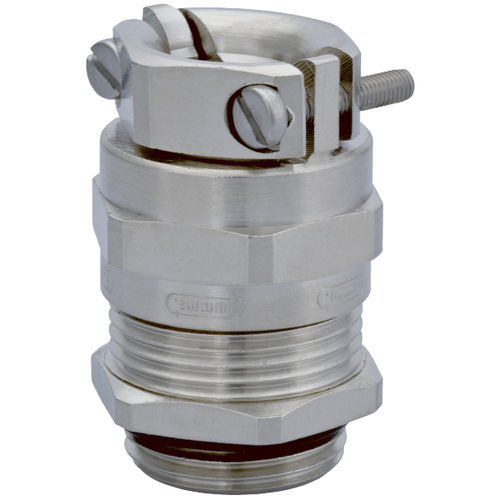

Nickel-plated brass cable gland HSK-MZ-EMCpolyamidenitrile butadiene rubber (NBR)EMC-shielded
Add to favorites
Compare this product
Characteristics
- Material
- polyamide, nitrile butadiene rubber (NBR), nickel-plated brass
- Protection level
- EMC-shielded, IP68, IP69K
- Other characteristics
- strain relief, with spiral flex protector
- Cable diameter
Min.: 3 mm
(0.12 in)Max.: 44 mm
(1.73 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
EMC-compatible cable gland with additional strain relief and bend protection
Clamping insert - Polyamide V0 according to UL 94
Material o-ring - NBR
NEMA type rating - 4,4X,6
Protection class - IP 68 – 10 bar,IP 69 K
Seal - NBR
Variant - PG.-long, NPT, PG, Metric-long, Metric
Catalogs
Cable Glands Main Catalogue
236 Pages
