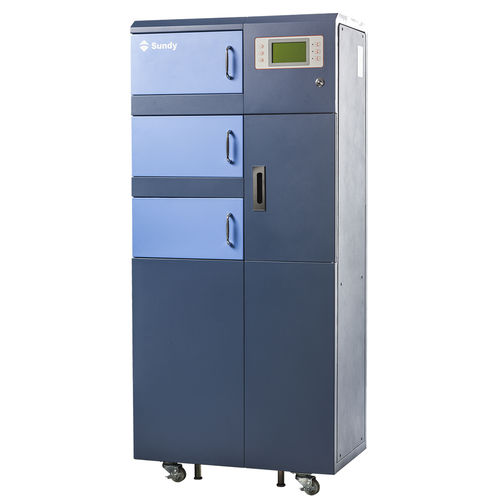

It is applied for quick drying of coal sample before sample pulverizing in the field of coal mining, power plant, metallurgy, chemical, etc.
Temperature control range Ambient temp〜60℃(Default 40℃)
Temperature control precision ±2.5℃
Temperature resolution 1℃
Drying units 3
Drying capacity 30〜500g
Max power 3kW
Power voltage 220V
○ Adopted the technology of “Three Dimension drying with wind penetration”(Hot air penetrate coal sample), drying efficiency is much higher than conventional drying (Please refer to the table comparison below).
Note: According to GB GBT474-2008《Standard method for coal sample preparation》: The thickness of coal sample should not over 1.5 times of the top size or surface loading 1g/c㎡, the thicker of the two.
○ After sample drying, samples can start air conditioning automatically in the dryer and after that being pulverized directly, human interference is minimized and it’s more convenient for operation.
○ Drying temperature is adjustable (Ambient temperature~ 60℃), drying temperature, drying time can be self-defined, completeness and representativeness is exactly according to related standards.
○ One unit controls several units, each unit is independent for operation.
