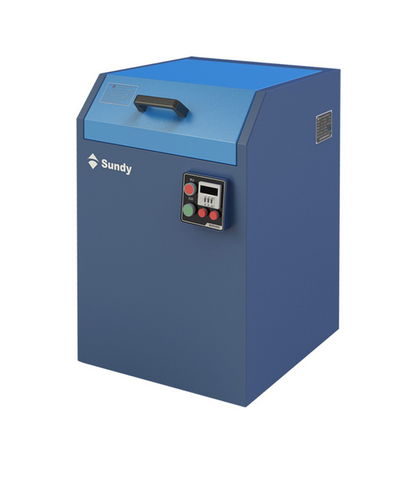

Roller mill SDPP seriesverticalconcrete

roller mill
roller mill
roller mill
roller mill
Add to favorites
Compare this product
indicative price


Product application
Rotational speed

940 rpm (5,906 rad.min-1)


Application: SDPP Pulverizer is designed to grind hard material to analytical size. It can be used in power industry, coal, fuel & chemical processing, metallurgical industry, building material, environmental industry and geological industry, etc. Specification: Model SDPP1*100a/ SDPP2*100a /SDPP3*100a Mortars(pc) 1/2/3 Feed Size(mm) ≤13 Discharge Size(mm) ≤0.2/0.212/0.25 Loading Capacity(g) 1*100/2*100/3*100 Power Requirement(V) 380 Max. Power(kW) 1.5 N.W.(kg) 187 /200/220 Dimension(mm) 560*675*875 Speed(r/min) 940 Highlights: Mortar can be pressed and removed easily. Traditional depress device locates at upper side of equipment. In SDPP pulverizer, unique flip type depress device can be moved to one side. Completely sealed mortar, no loss of sample. Patented mortar sealing technology prevents loss of sample and dust pollution. High grinding efficiency: The mortars will not rotate during the active grinding. And the percussive force between the grinding core and mortar is increased greatly. Safety: Auto power off when the cover is open. If this function fails, the indicator light give warning in advance, equipment stops running. Long service life of motor: Patented design of balanced eccentric vibration exciter ensures stable operation and long service life of mortor.
