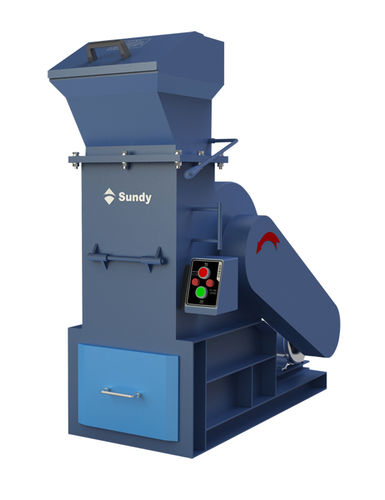

Hammer crusher SDHCW400*260
stationarywet typecoal

hammer crusher
hammer crusher
Add to favorites
Compare this product

Characteristics

Technology
hammer
Mobility
stationary
Other characteristics
wet type, coal
Capacity

Max.: 2,000 kg/h (4,409 lb/h)

Min.: 1,200 kg/h (2,646 lb/h)

Description

Application: SDHCW humid coal hammer crusher is designed to continuously crush the materials with high moisture into analytical size. It is widely used in power industry, coal, chemical processing, metallurgical industry, engineering material and geological industry, etc. Specification: Feed Size (mm) ≤100 Discharge Size (mm) ≤6 or ≤13 Productivity (kg/h) 2000 Power Requirement(V) 380 Max. Power(kW) 4 Weight (kg) 260 Dimension(mm) 1100*510*1280 Highlights: Good adaptability for high moisture materials, no blockage, few loss of moisture. ①Unique design for high moisture materials, equip the cleaning machine in the feeding hopper to avoid blockage. ②High efficiency of crushing and discharging. ③Creative sealed type crushing chamber, few loss of moisture. Easy operation, maintenance and clearance, safe and reliable. ①Creative drawer type sieve plate can be replaced easily without opening crushing chamber. ②All driving parts are equipped with protection facilities, meet the safety requirements. ③High strength of special materials “65Mn material” for the hammer head. High sample representativeness, no mixing of samples. ①No storage space for coal samples inside of the crushing chamber, the adhered matter can be removed . ②Balance the feeding and discarding of the coal samples of each batch. ③Reserved port for dust removing.
