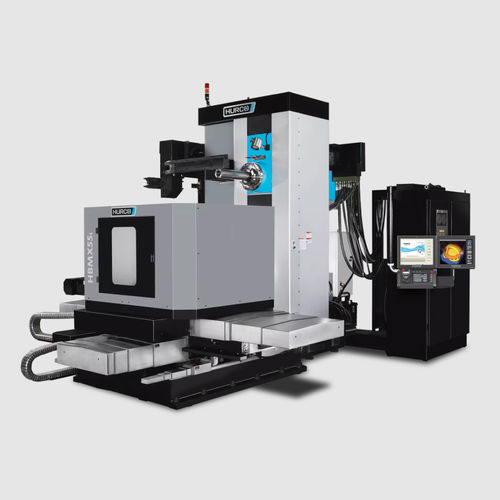

CNC boring milling machine HBMX 55i

horizontal4-axisprecision

Efficiency and precision at the highest technical level Table Spindle nose - table center (mm)-0 - 1.555 Table working surface W x D (mm)-1.120 x 1.250 T-Slots (DIN 650)-7 x 24 x 160 Load max. (uniform distribution) (kg)-4.000 Spindle Spindle Taper (DIN 69871 A)-SK50 Spindle Speed max., gear range 1 / 2 (1/min)-454 / 2.500 Spindle Torque max., gear range 1 / 2 (Nm) - 1.500 / 412 Feedrates Rapid traverse X-Axis / Y-Axis / Z-Axis / W-Axis (m/min)-10 / 10 / 10 / 4 Rapid traverse B-Axis (rpm)-1 Automatic Tool Changer Number of stations-60 Tool diameter max. (mm)-120 Tool length max. (mm)-400 Tool weight max. (kg)-25 Further details Floor space required (mm) (doors open, incl. control and chip conveyor)-5.597 x 5.272 x 3.370 Machine weight (kg)-19.500 Content coolant tank (l)-500 Scraper type chip conveyor - Standard
