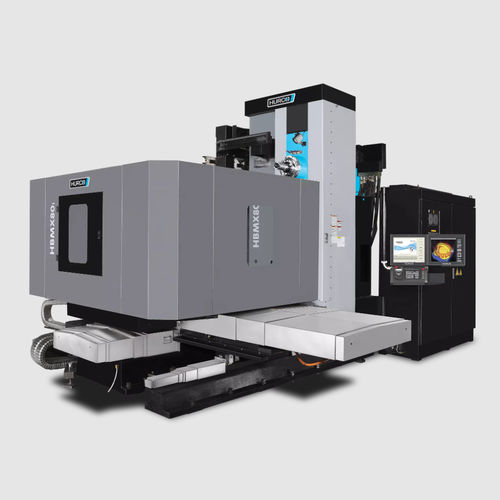

CNC boring milling machine HBMX 80 i

horizontal

Large envelope and small foot print Table Spindle nose - table center (mm)-130 - 2.280 Table working surface W x D (mm)-1.440 x 1.600 T-Slots (DIN 650)-9 x 24 x 160 Load max. (uniform distribution) (kg)-6.300 Spindle Spindle Taper (DIN 69871 A)-SK50 Spindle Speed max., gear range 1 / 2 (1/min)-454 / 2.500 Spindle Torque max., gear range 1 / 2 (Nm)-1.500 / 412 Feedrates Rapid traverse X-Axis / Y-Axis / Z-Axis / W-Axis (m/min)-10 / 10 / 10 / 4 Rapid traverse B-Axis (rpm)-1 Automatic Tool Changer Number of stations-60 / 90 Tool diameter max. (mm)-120 Tool length max. (mm)-400 Tool weight max. (kg)-25 Further details Floor space required (mm) (doors open, incl. control and chip conveyor)-6.711 x 5.781 x 3.765 Machine weight (kg)-23.500 Content coolant tank (l)-500 Scraper type chip conveyor-Standard
