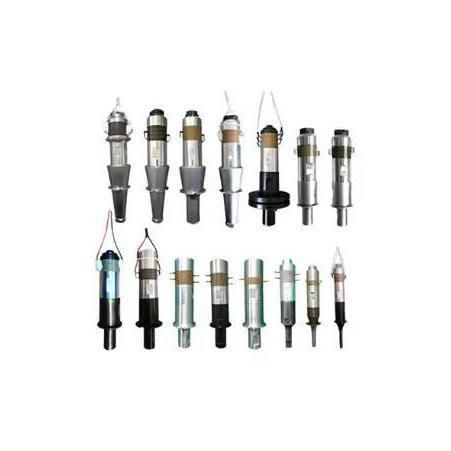

Cylindrical ultrasonic transducer HCUW29K38P8

piezoelectricdirect-contactlow-frequency

Product Overview
The ultrasonic transducer for welding HCUW29K38P8 operates at a resonant frequency of 28 kHz and is rated for 800 W. Nominal physical dimensions are diameter 38 mm and height 92 mm. Capacitance range: 7200–8200 pF. The impedance value on the original source appears corrupted; consult the manufacturer datasheet or supplier for exact impedance and tolerances.

Key Features

• Type / Model: HCUW29K38P8
• Resonant frequency: 28 kHz
• Rated power: 800 W
• Dimensions: Ø 38 mm × H 92 mm
• Capacitance: 7200–8200 pF
• Impedance: data corrupted in source — refer to datasheet or contact supplier

Specifications Summary

• Model: HCUW29K38P8
• Frequency: 28 kHz
• Power rating: 800 W
• Size: Ø 38 mm × H 92 mm
• Capacitance: 7200–8200 pF
• Impedance: consult manufacturer/datasheet

Applications & Compatibility

• Designed for integration in ultrasonic welding stacks and sonotrode/horn assemblies
• Suitable for welding systems and generators tuned to 28 kHz
• Used in industrial plastic and component welding applications where 28 kHz transducers are specified

Ordering & Support

• Specify model HCUW29K38P8 when ordering
• Request the manufacturer datasheet for exact impedance and tolerance values
• Contact supplier for matching, testing and custom assembly options
