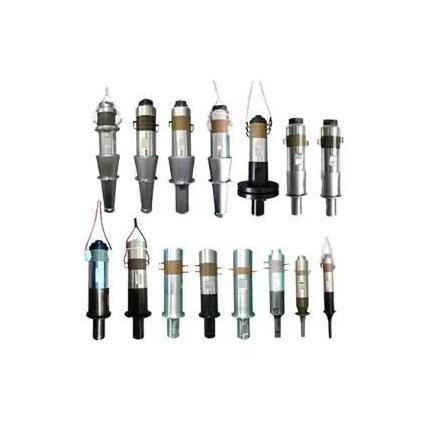

Cylindrical ultrasonic transducer HCUW20K50P8piezoelectricpiezodirect-contact
Add to favorites
Compare this product
Characteristics
- Configuration
- cylindrical
- Technology
- piezoelectric, piezo
- Use
- direct-contact
- Applications
- for plastics welding
- Frequency
20 kHz
Description
Product overview
Ultrasonic transducer model HCUW20K50P8 designed for ultrasonic welding equipment. Operates at a resonant frequency of 20 kHz with a nominal power rating of 2000 W. Mechanical dimensions and electrical characteristics are provided for integration into industrial welding systems.
Key features
Technical specifications
Applications
Installation & compatibility
Ultrasonic transducer model HCUW20K50P8 designed for ultrasonic welding equipment. Operates at a resonant frequency of 20 kHz with a nominal power rating of 2000 W. Mechanical dimensions and electrical characteristics are provided for integration into industrial welding systems.
Key features
- Resonant frequency: 20 kHz
- Power rating: 2000 W
- Diameter: 50 mm
- Height: 112 mm
- Capacitance: 17000–18000 pF
- Impedance: ≤ 10 Ω
Technical specifications
- Model: HCUW20K50P8
- Type: Ultrasonic welding transducer
- Resonant frequency: 20 kHz
- Nominal power: 2000 W
- Mechanical dimensions: Ø 50 mm × 112 mm (height)
- Capacitance: 17000–18000 pF
- Impedance: ≤ 10 Ω
Applications
- Ultrasonic welding of plastics and thin metal foils
- Industrial assembly and joining processes
- Production lines requiring repeatable ultrasonic energy delivery
Installation & compatibility
- Mounting and horn interface must match Ø50 mm configuration
- Requires a generator/inverter capable of 20 kHz and 2000 W output
- Verify electrical connections and impedance matching for optimal performance
