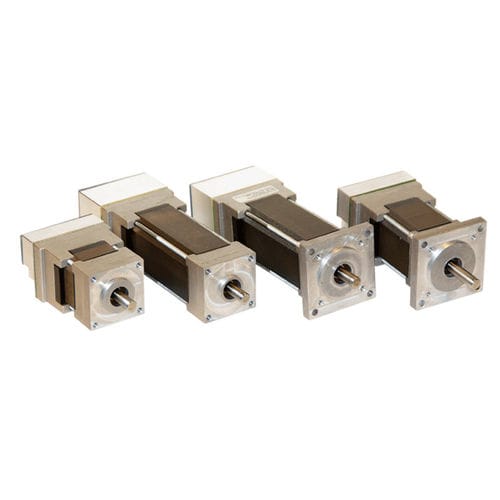

Brushless motor NT DYNAMO®

DCpermanent magnetNEMA 23

• Standardized Modules ○ Brings high volume pricing to low volume orders ○ Makes product performance easy to specify ○ Ensures maximum product quality • Integrated Electronic Controller ○ Eliminates mounting, wiring, and enclosure costs ○ Allows for "plug-n-play" operation • Flexible Performance ○ Operates from 12-48Vdc power sources ○ Operates in speed or torque mode ○ 4 quadrant closed loop or 2 quadrant open loop ○ Compact integrated encoder option ○ PLC or RS232 compatible Electrical • Integral Motor Controls Matched to a Motor Winding • 2 or 4 Quadrant Operation • 10Vdc-48Vdc Range (depending on motor control) Up to 50 oz-in Torque (with no gearing) • Ultra Smooth Precision Motion Quality • Approved Class B Insulation System • 100% Final Tested • Custom Windings Available Mechanical • Long Life Ball Bearing System • Size 17 or NEMA 23 Mounting Flange • Neodymium Ring Magnets (not arcs) • Stainless Steel Shaft • Over 20,000 Hours of Design Life @ Rated Torque • Standard Molex® Connectors • Small Package Size with Low Rotor Inertia • Up to 6000 RPM Operation Integral Motor Control and Encoders • External Motor Module ○ For Use with Customer Supplied Motor Control ○ Provides Hall Sensor and/or Encoder Outputs • Analog Motor Control ○ Economical Control via a Simple Speed Pot or a 0-5Vdc Control Signal • PWM Motor Control ○ Control via Customer Generated PWM Signal • Digital Motor Control ○ Easily Programmed Using a Computer ○ Programming Software Available ○ Provides User with the Ultimate Flexibility ○ Operating Modes – Speed, Voltage, or Torque
