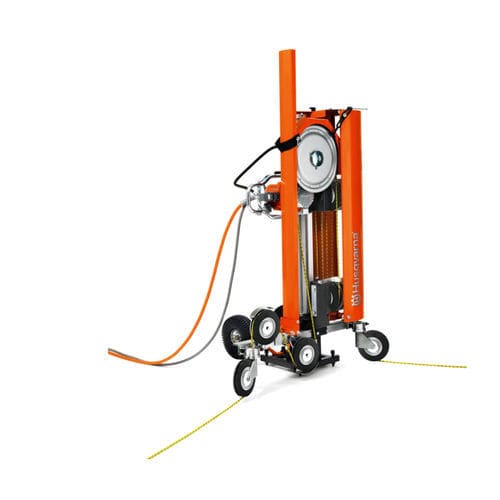

Diamond wire saw CS 10

horizontalverticalfor metals

Product overview
CS 10 is a wire saw system designed to be combined with electric wall saws WS 482 HF or WS 440 HF. Its symmetrical design allows operation in vertical and horizontal positions and access into confined spaces. The wire direction is reversible and the saw head can be mounted on either side of the track. The system supports dry cutting where water is impractical.

Key benefits

• Easy handling: compact design for transport, operation and storage
• Efficient and flexible: suitable for small and large cutting jobs in various materials
• User-friendly wireless remote control (with WS 482 HF or WS 440 HF)
• Interoperability: compatibility between wall and wire saw systems for fleet efficiency
• Flexible installation and operation: mountable on objects such as pipes; configurable for left- or right-side cutting

Features

• Designed for combination with WS 482 HF or WS 440 HF (wall saw compatibility)
• Reversible wire direction; saw head mountable on either side of the track
• Compact, symmetrical design enabling multi-position use and access to tight spots
• Net wire storage capacity: 10 m; suitable for wet and dry cutting depending on configuration

Tech data (top specifications)
Wire speed (gear 2, max): 24 m/s
Output power (with WS 482 HF and PP 492): 19 kW
Net wire storage capacity: 10 m
Weight (complete product without side packed articles): 100 kg
Article number: 966 56 57‑01

Applications

• Cutting steel, concrete and other building materials
• Small and large demolition or renovation jobs where flexible mounting and multi‑position cutting are required
