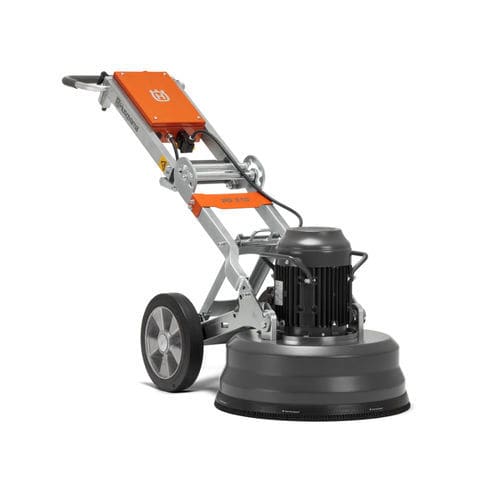

Planetary floor grinder PG 510

for concretefor coatingthree-phase

Product description
The PG 510 is a planetary floor grinder with three grinding discs and a total grinding width of 515 mm. It is designed for removing coatings, grinding and polishing concrete. The grinding head is sealed to keep dust and moisture out, which helps extend the service life of bearings and belts. The machine is suitable for rental and professional or semi-professional use. Quick-release couplings allow the grinding head to be separated from the chassis for folding and transport. A digital hour meter is integrated.

Key features

• Planetary operation with three grinding discs for versatile applications
• Sealed grinding head to protect bearings and belts from dust and moisture
• Self-adjusting floating cover with brush strip for tight seal and improved dust containment
• Compact, foldable chassis and dividable parts for easy transport and set-up
• User-friendly control panel with overload protection
• EZchange™ instant system for fast tool change

Benefits

• Simple operation (fixed speed, minimal adjustments)
• Efficient dust management on site
• Easy to transport and quick to install
• Time-saving tool changes reduce downtime

Product variant / brief article info
FLOOR GRINDER PG 510 | 380-420 V | 3 ph | 50 Hz | EU
Art nr: 970 75 49‑01

Technical specifications

• Engine power (manufacturer rated): 4 kW
• Grinding width: 515 mm
• Weight (complete product without side-packed articles): 133 kg
• Phases: 3 ph (1 ph available as option)
• Voltage options: 380-420 V (selected), 220-240 V (option)
• Pins: 5-pin preferred configuration (option for 2 shown)
• Integrated digital hour meter
• Quick-release couplings for separating grinding head from chassis
• Sealed grinding head to protect bearings and belts
