Planetary floor grinder BMG 2200RC

thermalthree-phaseplanetary

Product overview

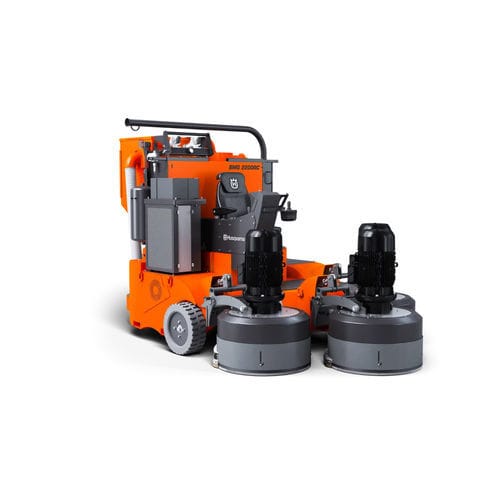

The Husqvarna Blastrac BMG 2200RC is a ride-on floor grinder designed for large horizontal surfaces and remote-control operation. The machine features two front drive wheels and a rear swivel castor for manoeuvrability. The operator station includes a seat with armrests, joysticks, push buttons and a touchscreen. Each of the three planetary grinding heads is individually operable, allowing precise coverage and distribution of grinding pressure. Variable grinding speed, rotation direction control and an independent suspension system are standard, enabling adaptation to varied job requirements.

Dust collection & filtration
Integrated high-capacity dust collection with HEPA 14 filtration (OSHA-compliant). System includes automatic pulse filter cleaning, Longopac® bagging system and a pre-separator supplied as standard to reduce filter load and improve on-site cleanliness.

Operation & controls
Remote-control capability for flexible operation and time savings. User interface via touchscreen displays key data: grinding head amperage, disc RPM, drive speed, grinding pressure and filter status. Ergonomic controls include joysticks and push buttons. Rear camera and LED lights on each head improve visibility on site.

Grinding system & tooling
Three planetary grinding heads (each head comprises three individual discs) provide wide coverage and even pressure distribution. Quick-release tool change system allows fast replacement of diamond tools or resin pads without tools. Variable speed and rotation direction control enable matching performance to surface and tooling.

Power & transportation
Rated engine output: 62 kW (as specified by the engine manufacturer). Standard 125 A power supply fitted. A battery pack is included for transportation of the drive system only, to facilitate moving the machine on/off trucks and around sites.

Design & ergonomics
Ride-on layout with comfortable operator seat, armrests and cup holders. Ergonomic control layout and touchscreen are designed for operator comfort and productivity during long shifts.

Included / standard features

• Three individually operable planetary grinding heads (3 discs per head)
• Integrated HEPA 14 filtration with automatic pulse cleaning
• Longopac® bagging system
• Pre-separator (standard)
• Remote control operation
• User-friendly touchscreen with head and filter data
• Quick-release tool change system
• Rear camera and LED lights on heads

Technical specifications

• Rated engine power: 62 kW
• Phases: 3 ph
• Grinding width: 2,150 mm
• Weight (complete product without side packed articles): 3,035 kg
• Drive: two front drive wheels + rear swivel castor
• Grinding heads: 3 planetary heads, each with 3 discs
• Dust filtration: HEPA 14 filters, automatic pulse cleaning, Longopac® bagging
• Power supply: 125 A supply; battery pack for transportation
• Controls: joysticks, push buttons, touchscreen; remote control operation
• Other: independent suspension; variable grinding pressure and speed; rotation direction control; rear camera; Art. no.: 970 61 65‑02
