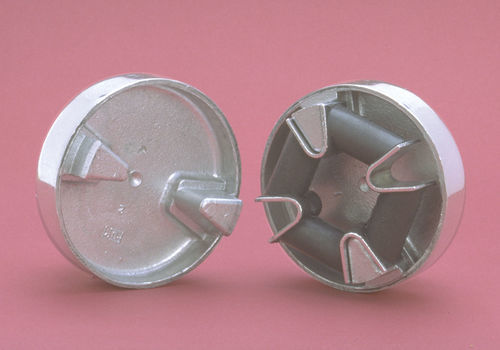

Flexible coupling MINIFLEX®compactlargealuminum
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Construction
- compact, large, aluminum
- Product applications
- machines
- Other characteristics
- torque
- Installation system
- flange
- Torque
Max.: 120 Nm
(88.507458 ft.lb)Min.: 2.5 Nm
(1.843905 ft.lb)- Rotational speed
Max.: 10,000 rpm
(62,831.8531 rad.min-1)Min.: 4,000 rpm
(25,132.7412 rad.min-1)
Description
Description
Compact flexible coupling designed for applications with limited installation space and reduced axial nesting.
Flexible element
Flange
Advantages
Specifications
Technical specifications
Compact flexible coupling designed for applications with limited installation space and reduced axial nesting.

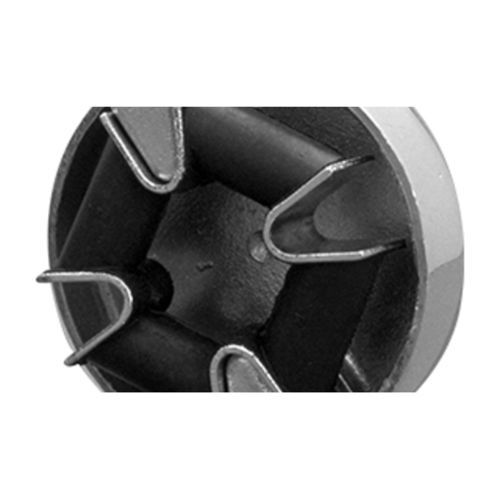

Flexible element
- Natural rubber block bonded to V-shaped metal armatures
Flange
- Aluminium or cast-iron
- Drive-segment
Advantages
- Effective attenuation of cyclic irregularities and torque peaks
- Extended service life due to precompression of the flexible element
- Tolerant to large misalignment, reducing the need for precise machine alignment
Specifications
- Push-fit assembly
- Compact, smooth cylindrical shape without protrusions
- Flexible element is precompressed during assembly to extend operating conditions where the rubber is not under tension
Technical specifications
- Type: flexible
- Product applications: machines
- Construction: compact, large
- Other characteristics: torque
- Installation system: flange
- Torque: Max.: 120 Nm (88.50746 ft.lb) — Min.: 2.5 Nm (1.84391 ft.lb)
- Rotational speed: 4,000 rpm, 7,000 rpm, 9,000 rpm, 10,000 rpm (25,132.7412 rad.min-1, 43,982.2972 rad.min-1, 56,548.6678 rad.min-1, 62,831.8531 rad.min-1)
