Coupling assembly MPP®

Description

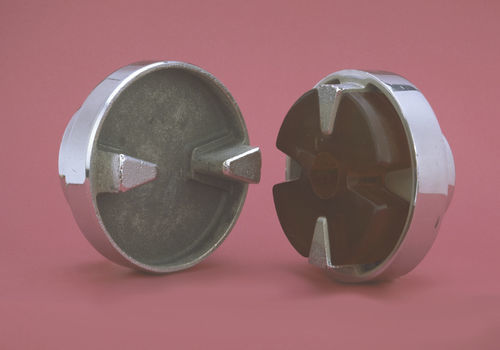

Compact flange-mounted flexible coupling designed for reduced torque transmission. Features a polyurethane Maltese-cross flexible element and cast-iron flanges with drive segments supplied unbored (except 633054 and 633055). The MPP® design provides interlocking mounting and a smooth cylindrical external profile.

Benefits

• Reduced overall size for constrained installations
• Simple assembly by interlocking and flange mounting
• Elastic element works in compression for predictable torque transmission
• Positive locking for safe torque transfer
• Wide operating temperature range: -30°C to +70°C (continuous)

Technical specifications

• Type: flexible
• Construction: compact
• Primary function: torque transmission
• Installation system: flange
• Torque: Max.: 2,000 Nm (1,475.12 ft·lb)
  Min.: 30 Nm (22.13 ft·lb)
• Rotational speed: Max.: 9,000 rpm (56,548.67 rad·min⁻¹)
  Min.: 0 rpm (0 rad·min⁻¹)
• Operating range (continuous): -30°C to +70°C

Materials and construction

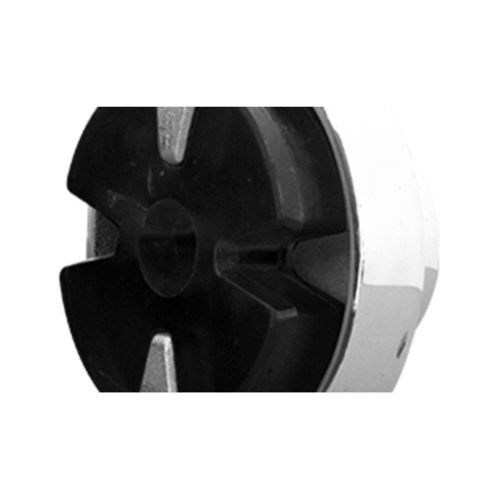

• Flexible element: polyurethane shaped as a Maltese cross
• Flanges: cast iron with drive segments supplied unbored (except 633054 and 633055)
• Compact cylindrical shape without external protrusions
• Elastic element designed to work in compression for durability

Installation and maintenance

• Mounting by interlocking; flange installation recommended for axial alignment
• Drive segments are supplied unbored — final boring and balancing to be performed on site
• Periodic inspection of the flexible element recommended; replacement parts available
