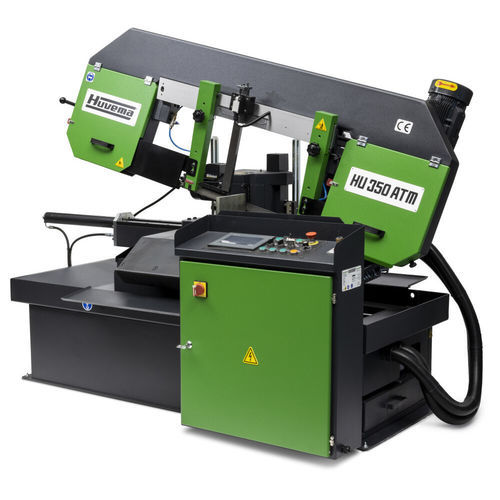

Band saw HU 350 ATM

verticalfor non-ferrous metalsfor steel

Product description
This fully automatic band saw machine is designed for cutting solid materials such as rolls and blocks, steel pipes and profiles, cast iron and non‑ferrous metals. It handles single pieces and series production with a maximum workpiece length of 350 mm and a saw blade height of 34 mm. The machine is suitable for industrial production and workshop use where reliable automatic feeding and repeatable cuts are required.

Includes:

• Hydraulic clamping
• Material feed via rollers for automatic sawing function
• Control panel with touchscreen
• Cooling system
• Adjustable height switch with material recognition
• Saw blade included
• Steel brush for chips
• Mechanical saw blade tension with manometer
• Foot control with emergency stop
• Variable speed
• 1.2 m roller conveyor

Features:

• Suitable for production sawing
• Industrial design and construction
• EU manufactured (Huvema)
• Fully automatic operation with material feed
• One program with 10 sawing steps
• Infinite number of cuts per sawing step
• Also usable manually or semi-automatically
• Adjustable feed speed
• One-sided miter possible by rotating the saw arm
• Saw arm cast in one piece for stability
• 34 mm saw blade height
• Gear-driven transmission
• CE standard compliant

Technical specifications

• Brand: Huvema
• Model: HU 350 ATM
• Article number: 16497
• EAN: 8718242560245
• Maximum workpiece length: up to 350 mm
• Saw blade height: 34 mm
• Roller conveyor length: 1.2 m
• Control: Touchscreen control panel
• Clamping: Hydraulic clamping
• Feeding: Material feed via rollers; adjustable feed speed
• Operation modes: Fully automatic, semi-automatic, manual
• Programs: One program with 10 sawing steps (infinite cuts per step)
• Safety: Foot control with emergency stop; CE standard compliant
• Other: Cooling system; mechanical saw blade tension with manometer; steel brush for chips; gear-driven; saw arm cast in one piece for stability; EU manufactured
