Band saw HU 270 N-4 Topline
verticalfor metalssemi-automatic

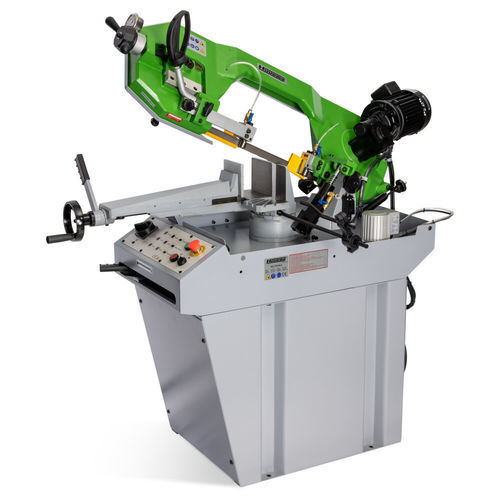

Band saw - HU 270 N-4 Topline - Huvema B.V. - vertical / for metals / semi-automatic
Band saw - HU 270 N-4 Topline - Huvema B.V. - vertical / for metals / semi-automatic
Band saw - HU 270 N-4 Topline - Huvema B.V. - vertical / for metals / semi-automatic - image - 2
Band saw - HU 270 N-4 Topline - Huvema B.V. - vertical / for metals / semi-automatic - image - 3
Band saw - HU 270 N-4 Topline - Huvema B.V. - vertical / for metals / semi-automatic - image - 4
Band saw - HU 270 N-4 Topline - Huvema B.V. - vertical / for metals / semi-automatic - image - 5
Band saw - HU 270 N-4 Topline - Huvema B.V. - vertical / for metals / semi-automatic - image - 6
Add to favorites
Compare this product

Characteristics

Technology
band
Orientation
vertical
Treated material
for metals
Operational mode
semi-automatic
Other characteristics
precision
Round piece diameter

90 mm, 145 mm, 225 mm
(4 in, 6 in, 9 in)

Blade length

2,480 mm
(97.64 in)

Blade width

27 mm
(1.06 in)

Description

Product description
The Huvema TOPLINE semi-automatic bandsaw is designed for workshops and industrial users who need precise single-piece cutting with straightforward controls. The machine combines a cast-iron saw arm, robust base and precise guiding elements to ensure repeatable, accurate cuts. 225 mm cutting capacity is indicated for typical round material in the product references.

Overview
  • Product name: Bandsaw machine
  • Brand: Huvema
  • Range / Model series: TOPLINE (semi-automatic)
  • Type: Semi-automatic bandsaw
  • Intended use: Saw single pieces with high precision and easy control
  • Category path: Machine tools > Sawing machines > Band saw machines > Professional band saw machines


Key features
  • High-load gear drive
  • Saw band brush to remove chips
  • Cylinder for automatic arm lowering
  • Material clamp with quick-release
  • Built-in coolant system
  • Hydraulic blade tensioning
  • Preset miter cuts at common angles
  • Workpiece stop and adjustable length stop for repeat cuts
  • Elevated work height for operator comfort
  • Easy blade change with hydraulic tension adjustment
  • End switch to cut power at end of stroke
  • Adjustable roller guides for precise cutting


Technical specifications
  • Cutting capacity 90° round: 225 mm
  • Cutting capacity 90° square: 190 mm
  • Cutting capacity 90° rectangular: 245 x 150 mm
  • Cutting capacity 45° round: 145 mm
  • Cutting capacity 45° square: 145 mm
  • Cutting capacity 45° rectangular: 150 x 190 mm
  • Cutting capacity 60° round: 90 mm
  • Cutting capacity 60° square: 90 mm
  • Cutting capacity 60° rectangular: 90 x 115 mm
  • Blade size: 2480 x 27 x 0.9 mm
  • Cutting speed: 45 - 90 m/min (2 speeds)
  • Motor power: 1.1 kW
  • Coolant pump power: 0.1 kW
  • Number of speeds: 2
  • Workpiece height: 940 mm
  • Voltage: 400 V
  • Machine weight: 195 kg
  • Machine dimensions (L x W x H): 1450 x 510 x 1450 mm
  • Article number: 16324
  • Barcode / EAN: 8718242558228
  • HS-Code: 84615019


Applications
  • General metal workshops, fabrication and prototyping where precise single-piece cuts are required
  • Maintenance and repair shops, small production runs and preparation of profiles and bars


Additional information found on the page
  • Article ID: 16324
  • Product images available showing the machine from different angles
  • Alternate language link indicates a 225 mm capacity for round material
