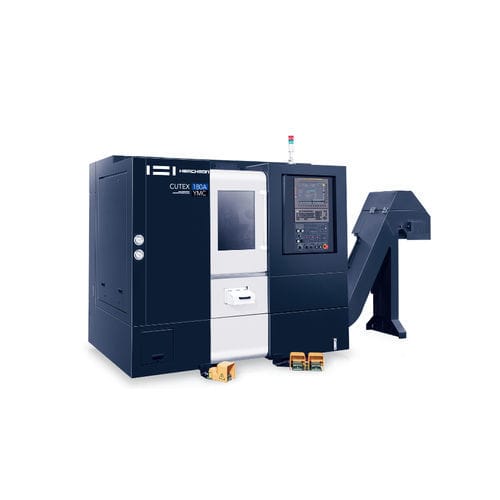

CNC turning center CUTEX-180 series4-axisA2-6A2-5
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 4-axis
- Spindle mount
- A2-6, A2-5
- Number of tool stations
- 12 tools, 24 tools
- Other characteristics
- with turret, spindle, high-precision, high-productivity, compact, rigid, Y-axis
- Diameter
545 mm, 700 mm
(21.46 in, 27.56 in)- Spindle speed
4,500 rpm, 6,000 rpm
(28,274.334 rad.min-1, 37,699.112 rad.min-1)- Axe X
205 mm, 220 mm
(8 in, 9 in)- Rapids on X
36,000 mm/min
(24 in/s)- Rapids on Z
36,000 mm/min
(24 in/s)- Nominal power
3.7 kW, 5.5 kW, 11 kW, 15 kW
(5 hp, 7.5 hp, 15 hp, 20.4 hp)- Coolant capacity
80 l, 100 l, 170 l, 190 l
(21 gal, 26 gal, 45 gal, 50 gal)- Overall lenght
2,300 mm, 2,500 mm
(91 in, 98 in)- Overall width
1,650 mm, 1,700 mm
(65 in, 67 in)- Overall height
1,710 mm, 1,910 mm, 1,995 mm
(67 in, 75 in, 79 in)- Weight
3,600 kg, 3,750 kg, 4,400 kg, 4,550 kg, 4,700 kg
(7,937 lb, 8,267 lb, 9,700 lb, 10,031 lb, 10,362 lb)
Description
CUTEX-180 maximizes processing capability and user convenience compared to existing 6” / 8” models and maintains high precision even during long-term processing by minimizing thermal displacement based on a rigid construction and compact structure.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
