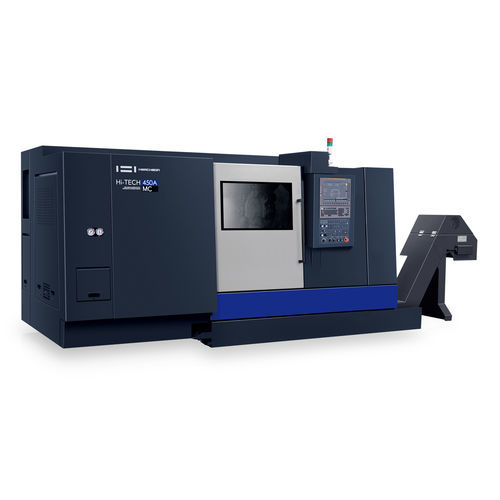

CNC turning center Hi-TECH 450 series3-axisA2-6A2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Spindle mount
- A2-6, A2-8
- Number of tool stations
- 12 tools, 10 tools
- Applications
- for heavy-duty machining
- Other characteristics
- high-precision, high-productivity, high-rigidity
- Diameter
700 mm
(27.56 in)- Spindle speed
1,800 rpm, 2,500 rpm, 3,500 rpm, 4,000 rpm
(11,309.734 rad.min-1, 15,707.963 rad.min-1, 21,991.149 rad.min-1, 25,132.741 rad.min-1)- Axe X
260 mm, 280 mm
(10 in, 11 in)- Axe Z
790 mm
(31 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
22 kW, 26 kW
(29.9 hp, 35.4 hp)- Coolant capacity
190 l, 240 l
(50 gal, 63 gal)- Overall lenght
3,500 mm, 4,100 mm
(138 in, 161 in)- Overall width
1,970 mm, 2,045 mm
(78 in, 81 in)- Overall height
1,875 mm, 2,205 mm
(74 in, 87 in)- Weight
Min.: 7,500 kg
(16,535 lb)Max.: 9,600 kg
(21,164 lb)
Description
Hi-TECH 450 provides a rigid and stable heavy duty cutting based on a highly rigid box-way feed structure designed with an air-floating system and bed structure while maintains high precision even during long-term processing by minimizing thermal displacement
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
