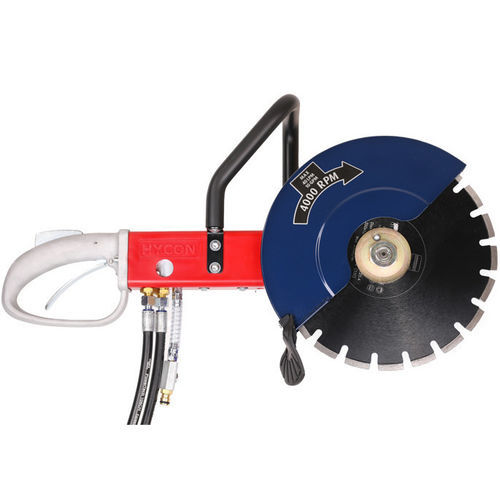

Concrete cutter HCS14 Underwater
Add to favorites
Compare this product
Description
Product description
The HYCON HCS cut-off saws cut all types of concrete, steel, rock, etc. The HYCON cut-off saw is a very sturdy tool for cutting even under extreme conditions. The HYCON HCS saws are built for hard use day after day – without breakdowns.
The hydraulic cut-off saw from HYCON can be used for horizontal and vertical cutting. The saw stops automatically if the blade jams thanks to the system pressure relief valve. The blade stops rotating a maximum of 10 sec. after releasing the trigger, ensuring no injury to the operator.
The HCS 14 underwater has holes in the shielding for easy cleaning.
Hydraulic direct drive high-quality motor ensures a minimum of service.
Technical data
Item no.: 3030401-01
Weight without hose/disc [kg]: 7.4
Blade diameter: Ø350 mm
Cutting depth [mm]: 137
Oil flow [LPM]: 20-30
Working pressure [bar]: 120
Max pressure [bar]: 172
Rotation speed max [rpm]: 3800
Blade peripheral speed max [m/s]: 69
Sound power level LWa [dB]: 116
CE approval:
Features / technical specifications
The HYCON HCS cut-off saws cut all types of concrete, steel, rock, etc. The HYCON cut-off saw is a very sturdy tool for cutting even under extreme conditions. The HYCON HCS saws are built for hard use day after day – without breakdowns.
The hydraulic cut-off saw from HYCON can be used for horizontal and vertical cutting. The saw stops automatically if the blade jams thanks to the system pressure relief valve. The blade stops rotating a maximum of 10 sec. after releasing the trigger, ensuring no injury to the operator.
The HCS 14 underwater has holes in the shielding for easy cleaning.
Hydraulic direct drive high-quality motor ensures a minimum of service.
Technical data
Item no.: 3030401-01
Weight without hose/disc [kg]: 7.4
Blade diameter: Ø350 mm
Cutting depth [mm]: 137
Oil flow [LPM]: 20-30
Working pressure [bar]: 120
Max pressure [bar]: 172
Rotation speed max [rpm]: 3800
Blade peripheral speed max [m/s]: 69
Sound power level LWa [dB]: 116
CE approval:
Features / technical specifications
- Item no.: 3030401-01
- Weight without hose/disc: 7.4 kg
- Blade diameter: Ø350 mm
- Cutting depth: 137 mm
- Oil flow: 20-30 LPM
- Working pressure: 120 bar
- Max pressure: 172 bar
- Rotation speed max: 3800 rpm
- Blade peripheral speed max: 69 m/s
- Sound power level LWa: 116 dB
