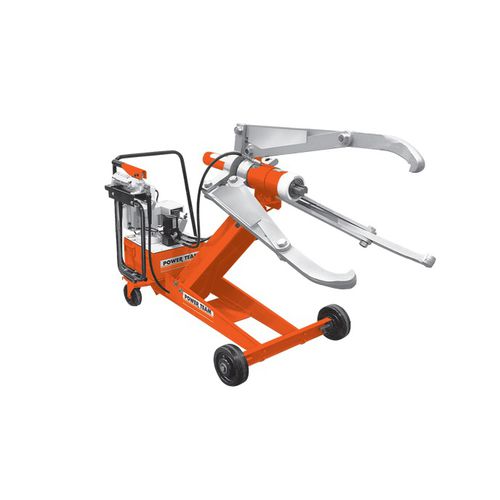

Hydraulic bearing puller PH553C series

three-armself-centering

1 Puller can be assembled in 2 or 3-jaw configurations. 2 Hydraulically-actuated jaws allows cylinder to move in or out with a safe, secure grip on workpiece. 3 Hydraulic lift system for easy, precise position of puller. 4 Unique dual pump arrangement. Low pressure pump positions, holds and opens jaws. The high pressure pump advances and retracts the pushing cylinder without releasing clamped jaws. 5 Swivel casters give ease of mobility. 6 Large wheels make movement of cart easy. 7 Super Lock-Jaw™ feature means the harder the pull, the tighter the puller jaws grip. No chains or cages required to keep puller jaws from slipping or springing off the part being pulled. 8 Guards at pinch points protect operator. 9 Puller can be mounted on cart 90 degrees to right or left of puller cart centerline, permitting use in tight quarters, such as between machinery. 10 Self-centering design puller jaws will automatically grip work evenly. 11 Choice of cylinder with a 6.25” or 13.25” stroke
