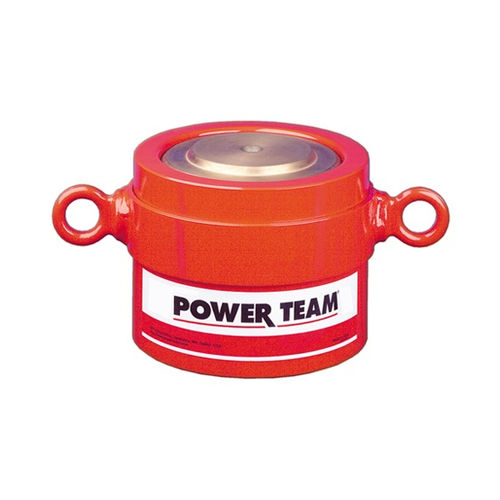

Hydraulic cylinder R seriespistonsingle-acting load-returnstandard
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- single-acting load-return
- Other characteristics
- standard, high-tonnage, corrosion-resistant
- Stroke
2 in, 6 in, 10 in
- Bore
Max.: 12 in
Min.: 3.75 in
- Pressure
Max.: 10,017 psi
Min.: 9,690 psi
- Rod diameter
Max.: 12 in
Min.: 4 in
- Force
Max.: 565 tf
Min.: 55 tf
Description
HIGH-TONNAGE, LOW CYCLE, HYDRAULIC RETURN.
■ Visible indicator band alerts when stroke limit is reached. Overflow port (weep hole) stroke limiter prevents piston from being overextended.
■ Alloy heat treated piston and body for reliability and strength.
■ Plated piston rod increases corrosion resistance and gives superior bearing support.
■ Optional swivel load caps reduce the effects of off-center loading tilts up to 5 degrees. Radial
grooves on top of cap reduce load slippage.
