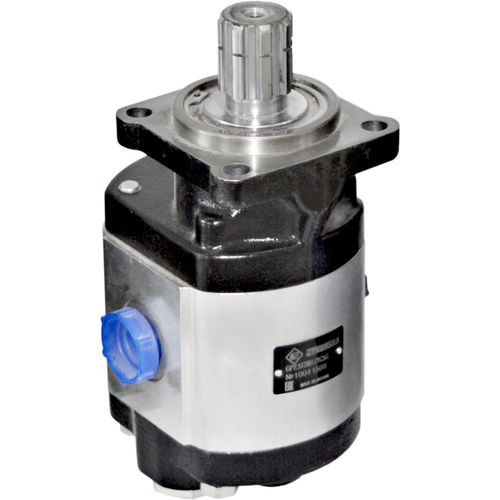

Hydraulic gear pump T seriesaluminumcast ironfor vehicles
Add to favorites
Compare this product
Characteristics
- Type
- gear
- Material
- aluminum, cast iron
- Applications
- for vehicles
- Other characteristics
- high-efficiency, with seal
- Pressure
Max.: 325 bar
(4,714 psi)Min.: 170 bar
(2,466 psi)- Speed
Max.: 3,000 rpm
(18,850 rad.min-1)Min.: 300 rpm
(1,885 rad.min-1)
Description
Group 2.5
- Displacement 16 ... 45 cmᶟ
- Long service life
- Assembling dimensions according to ISO
- Direct installation on PTO
Gear pumps Group 2.5 are manufactured from aluminum alloy. Direct installation on PTO, Assembling dimensions according to ISO. For ease installation, they have rear and side ports. High efficiency for the whole working life. Ideal solution for use in hydraulic systems of mobile vehicles on chassis.
Group 3
- Displacement 34 ... 100 cmᶟ
- Long service life
- Assembling dimensions according ISO and UNI
- Direct installation on PTO
- Multiple pumps are avaible
- Reversible direction is avaible
Gear pumps Group 3 are manufactured with cast iron. Direct installation on PTO, Assembling dimensions according to ISO, UNI. For ease installation, they have rear and side ports. High efficiency for the whole working life. Ideal solution for use in hydraulic systems of mobile vehicles on chassis.
Group 4
- Displacement 63 ... 150 cm3
- Long service life
- Assembling dimensions according ISO
- Direct installation on PTO
- Multiple pumps are avaible
Gear pumps Group 4 are manufactured with cast iron. Direct installation on PTO, Assembling dimensions according to ISO, UNI. For ease installation, they have rear and side ports. High efficiency for the whole working life.
