Fiber laser cutting machine HF·A series

for aluminumfor stainless steelfor carbon steel

Overview

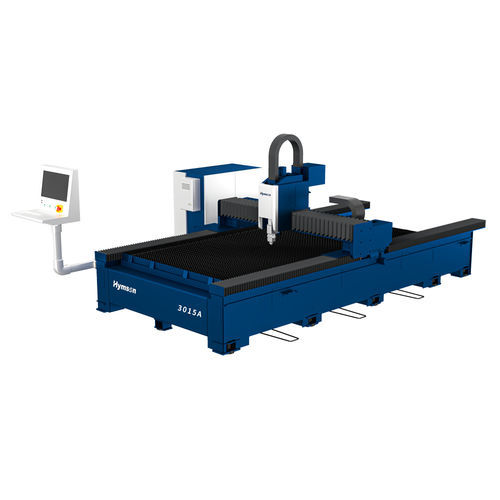

HF·A Series is a high‑performance single‑table fiber laser cutting machine by Hymson, designed for flexible deployment and efficient sheet metal processing. The machine features a mobile operating table to simplify loading/unloading and small‑footprint installation.

Highlights

• High‑speed, high‑precision cutting of medium/thin carbon steel, stainless steel and aluminium plates.
• Accurate motion and high‑speed piercing for complex part production.
• High‑strength welded body and intelligent ventilation for long‑term stability and production safety.

Machine Structure
Modular design

• Independent functional modules are scientifically integrated to ensure consistent quality matching across components and ease of maintenance.
• Modularity accelerates product configuration to respond rapidly to production needs.

Machine body with high strength structure

• High‑strength sheet welded frame with high‑temperature stress relief to minimize internal stresses and maintain geometric stability.
• Structural design prioritizes rigidity and long‑term dimensional stability for precision cutting.

High strength cross beam

• Hymson patented drawn aluminium cross beam: low mass, high tensile strength and improved dynamic response.
• Validated by simulation and endurance tests to ensure rigidity and consistent performance over time.

Servo motor and drives

• Brand servo motors and drives with high‑resolution encoders for dynamic response and positioning accuracy.
• Compact, energy‑efficient drive systems for industrial production cycles.

Precision gear drive

• ALPHA high‑precision machined pinions and racks, ground for tight matching and smooth quiet rotation.
• Double‑drive gantry motion option for higher acceleration and faster positioning; load‑driven compact structure reduces torque and vibration.

CNC numerical control system

• Windows‑10 based industrial control platform with industrial‑grade CPU providing security, reliability and self‑diagnostics.
• FSCUT flat laser cutting software: graphic processing, parameter setting, custom process editing, nesting, path planning, simulation and process control.
• System compatible with automatic loading/unloading lines and FMS flexible production lines to support automated production.

Performance indexes
Equipment model: HF3015A | HF4020A | HF6020A | HF6025A | HF8025A
Effective cutting range: 3000×1500 mm | 4000×2000 mm | 6000×2000 mm | 6000×2500 mm | 8000×2500 mm
X/Y‑axis positioning accuracy: ±0.03 mm/m (all models)
X/Y‑axis repositioning accuracy: ±0.02 mm (all models)
Maximum X/Y linkage positioning speed: 110 m/min | 110 m/min | 110 m/min | 100 m/min | 100 m/min
Maximum X/Y acceleration: 1.2 g | 1.0 g | 1.0 g | 1.0 g | 1.0 g
Floor space examples: 5000×2500 mm | 6300×3000 mm | 8300×3000 mm | 8700×3900 mm | 10800×3900 mm

Additional features

• Intelligent dust exhaust focused at the cutting zone to improve ventilation efficiency.
• Intelligent gas control system delivering gas savings up to 50% depending on application.
• Auto‑focusing head: fast and precise for consistent cut quality.
• Full‑automatic lubrication system for gear and rack to reduce maintenance needs.
• Installation, training and after‑sales support provided by factory‑trained Hymson engineers.

Technical specifications

• Model designation: HF·A Series
• Manufacturer / Brand: Hymson
• Effective cutting ranges available: 3000×1500 mm, 4000×2000 mm, 6000×2000 mm, 6000×2500 mm, 8000×2500 mm
• X/Y‑axis positioning accuracy: ±0.03 mm/m
• X/Y‑axis repositioning accuracy: ±0.02 mm
• Maximum X/Y linkage speed: up to 110 m/min (model dependent)
• Maximum X/Y acceleration: up to 1.2 g (model dependent)
• Structure: high‑strength welded sheet body with high‑temperature stress relief
• Motion: branded servo motors and drives; precision gear drive with ALPHA pinions and racks; double‑drive gantry motion available
• Control: Windows‑10 based CNC platform with FSCUT software (nesting, path planning, simulation, process control)
• Auxiliary systems: intelligent dust exhaust, intelligent gas control, auto‑focusing, full‑automatic lubrication
