Product overview

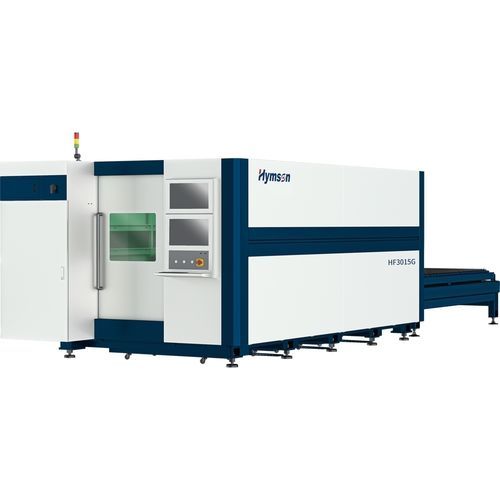

HF-G Series high speed fiber laser cutting machine is a dual-platform, fully enclosed laser cutting system designed for high-speed, high-precision cutting of thin and medium metal plates such as carbon steel, stainless steel and aluminum.

Key highlights

• Modular design enabling high-quality matching of components and ease of maintenance.
• Fully enclosed double-platform configuration for continuous, safe production.
• High-speed, high-precision cutting suitable for small, complex and batch parts.
• Professional laser cutting control and user interface for stable, repeatable operation.

G-series High Speed Fiber Laser Cutting Machine's Features

• 7Hz low-pass filtering + 1.5G acceleration: improves dynamic performance and enables precise intelligent corner processing.
• Hymson patented machine bed: redesigned bed and optimized components for long-term stability and high-dynamic cutting.
• Thermal dynamic compensation technology: intelligent compensation to maintain long-term accuracy.
• Customized control algorithms: tailored algorithms to enhance servo performance and motion precision.
• High-match custom components: high-performance servo motors and reducers to improve transmission response.
• Opto-mechanical depth optimization: coordinated optimization of laser, mechanical hardware and motor algorithms for improved overall performance.

Advantages

• Speed boost: cutting speeds increase by 50%–100% depending on part geometry and thickness.
• Efficiency gain: higher cutting speeds and throughput can yield a 1–2× increase in processing capacity.
• Long-term stability: structural design and automation ensure consistent high-speed, high-dynamic performance over time.

Structure and machine construction

• Modular layout: independently functional components integrated for reliable whole-machine matching.
• High-strength welded machine body with thermal stress-relief treatment to ensure rigidity and tolerance control.
• Zoned ventilation system: segmented extraction with follow-up control to reduce energy use and improve dust removal effectiveness.
• Ultra-high-temperature protection: customized refractory materials and 360° protection for high-power applications.
• High-strength cross beam: patented drawn-aluminum cross beam for low mass, high tensile strength and superior dynamic characteristics.
• Branded servo motors and drives with high-resolution encoders for high dynamics and energy efficiency.
• Precision gear drive: machined pinions and racks with high matching rate and double-drive gantry for greater acceleration.

FSCUT laser control system

• Hymson Super Brain — EtherCAT bus control platform on Windows 10 architecture with industrial-grade CPU for reliable operation and self-diagnostics.
• FSCUT modules: production management & statistics, laser processing technology, cutting control, intelligent assistance, rapid proofing & debugging, modular diagnostics & maintenance, local & remote support; system response time ≤ 100 μs.
• Supports integration with automatic loading/unloading lines and flexible production (FMS) for automated manufacturing.

Performance Indexes (table)
Equipment Model | HF3015G | HF4020G
Effective Cutting Range | 3100 mm x 1550 mm | 4000 mm x 2000 mm
X/Y-axis Positioning Accuracy | ±0.03 mm/m | ±0.03 mm/m
Low-pass Filtering | 7 Hz | 7 Hz
Maximum X/Y-axis Acceleration | 1.5 g | 1.5 g
Maximum Z-axis Positioning Speed | 40 m/min | 40 m/min
Floor Space of Whole Machine | 8700 mm x 2800 mm | 10800 mm x 3500 mm

Technical specifications

• Series / Model: HF-G Series (examples: HF3015G, HF4020G)
• Effective cutting range: HF3015G = 3100 mm × 1550 mm; HF4020G = 4000 mm × 2000 mm
• X/Y-axis positioning accuracy: ±0.03 mm/m
• Low-pass filtering frequency: 7 Hz
• Maximum X/Y-axis acceleration: 1.5 g
• Maximum Z-axis positioning speed: 40 m/min
• Floor space (whole machine): HF3015G = 8700 mm × 2800 mm; HF4020G = 10800 mm × 3500 mm
• Design: modular, fully enclosed double-platform configuration
• Cooling / protection: ultra-high-temperature protection and zoned ventilation system
• Control system: FSCUT (EtherCAT bus, Windows 10 architecture, industrial CPU, response time ≤ 100 μs)
• Drive & motion: branded servo motors, high-resolution encoders, precision gear drive, double-drive gantry
• Typical materials: carbon steel, stainless steel, aluminum and other thin-to-medium plates
