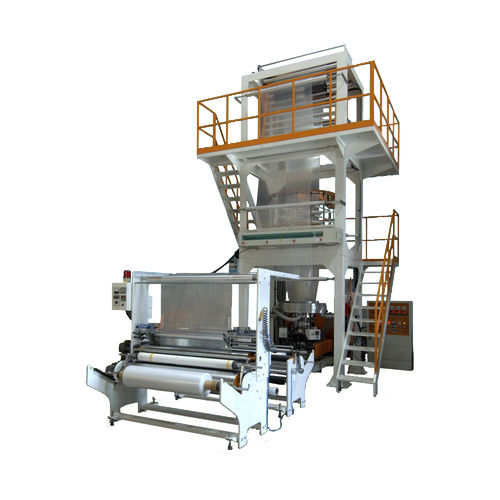

Blown film extrusion line HP-LD SERIES

for thermoplastics

LDPE/LLDPE HIGH SPEED FILM BLOWING MACHINE Main Features: SUITABLE MATERIAL LDPE Specification: HP-25LD SUITABLE MATERIAL LDPE MAX. FILM WIDTH 200 MM MAX. FILM OUPUT 15 KGS/HR SCREW DIA. 25 MM SCREW L/D 28:1 DRIVING MOTOR AC 3 HP + INVERTER DIE DIA. 60 MM AIR RING DIA. 100 MM TAKE-UP ROLLER 250 MM WIDING ROLLER 250 MM EFFECTIVE WIDTH 200 MM _____________________________________________________ HP-35LD SUITABLE MATERIAL LDPE MAX. FILM WIDTH 600 MM MAX. FILM OUPUT 40 KGS/HR SCREW DIA. 35 MM SCREW L/D 30:1 DRIVING MOTOR AC 10 HP + INVERTER DIE DIA. 120 MM AIR RING DIA. 200 MM TAKE-UP ROLLER 700 MM WIDING ROLLER 700 MM EFFECTIVE WIDTH 600 MM
