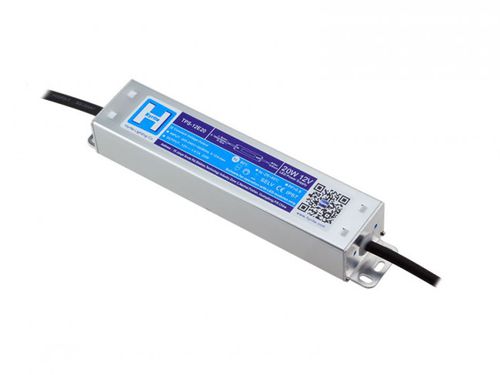

Encapsulated power supply TPS series
AC/DCwith short-circuit protectionwith overload protection

Encapsulated power supply - TPS series - Hyrite Lighting Co. - AC/DC / with short-circuit protection / with overload protection
Encapsulated power supply - TPS series - Hyrite Lighting Co. - AC/DC / with short-circuit protection / with overload protection
Encapsulated power supply - TPS series - Hyrite Lighting Co. - AC/DC / with short-circuit protection / with overload protection - image - 2
Encapsulated power supply - TPS series - Hyrite Lighting Co. - AC/DC / with short-circuit protection / with overload protection - image - 3
Encapsulated power supply - TPS series - Hyrite Lighting Co. - AC/DC / with short-circuit protection / with overload protection - image - 4
Encapsulated power supply - TPS series - Hyrite Lighting Co. - AC/DC / with short-circuit protection / with overload protection - image - 5
Encapsulated power supply - TPS series - Hyrite Lighting Co. - AC/DC / with short-circuit protection / with overload protection - image - 6
Encapsulated power supply - TPS series - Hyrite Lighting Co. - AC/DC / with short-circuit protection / with overload protection - image - 7
Encapsulated power supply - TPS series - Hyrite Lighting Co. - AC/DC / with short-circuit protection / with overload protection - image - 8
Add to favorites
Compare this product

Characteristics

Mounting / format
encapsulated
Type
AC/DC
Protection
with short-circuit protection, with overload protection
Protection class
IP67
Certifications
CE, TUV
Other characteristics
waterproof
Input voltage

Min.: 185 V

Max.: 265 V

Output voltage

5 V, 12 V, 24 V

Current

Min.: 0.83 A

Max.: 50 A

Power

Min.: 20 W

Max.: 300 W

Description

With requirement for high power factor,low eletro-magnetic disturbance. LED module, strip, flex ribbon, bar light, wall washer,panel light, etc... Specially for application with narrow space, such as covelight, light box, channel letter... Complies with: EN55015:2013, EN55015:2013+A1, EN61547:2009, EN61000-3-2:2014,EN61000-3-3:2013 EN61347-1:2008+A1:2010+A2:2013, EN61347-2-13:2014, EN62493:2010 Constant voltage output. High efficiency 90%(100~300W), more electricity saving than regular power supply. Short circuit,overload Protection. Operating temperature: -25°C~+60°C PF>0.9
