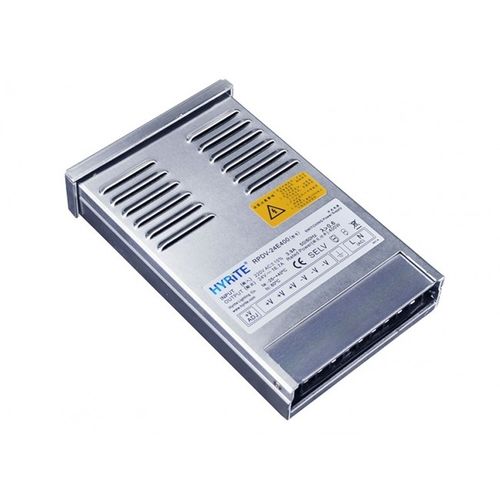

AC/DC power supply RPDV-24E400
with short-circuit protectionwith overload protectionbuilt-in

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Other characteristics
with short-circuit protection, with overload protection, built-in

400 W

Input voltage

Max.: 250 V

Min.: 170 V

Output voltage

24 V


16.7 A


400W 24V Semi-potted Rainproof Be the first to review this product -External driver for LED module, strip, flex ribbon, bar light, wall washer, panel light, etc... -Special design for application with narrow space, such as cove light, LED light box, channel letter... -Constant voltage output -High efficiency Full aluminum case, good for heat dissipation. With slide cover, more convenient for wire connection. With loading indicator,green for normal, red for overload. Built-in protections of under voltage / short-circuit / overload. Half potted rainproof model, PCB is potted with resin,preventing humidity,water or insects going in. Safety design with AC input power cord and DC output terminal,preventing electrical shock. Model no.: RPDV-24E400 Input voltage: 170-250 VAC 50/60 Hz Input Voltage System: 220-240VAC Max. output power: 400 W max Output type: Constant voltage Power Factor: Low PF~0.6 Output voltage: 24V DC ± 5% Max. output current: 16.7 A max Installation: Outdoor rainproof Protection: Overload, Short circuit Dimensions(L*W*H): 195*115*40 mm Weight(kg): 1.9000


No catalogs are available for this product.

See all of Hyrite Lighting Co.‘s catalogs
