Networked communication unit

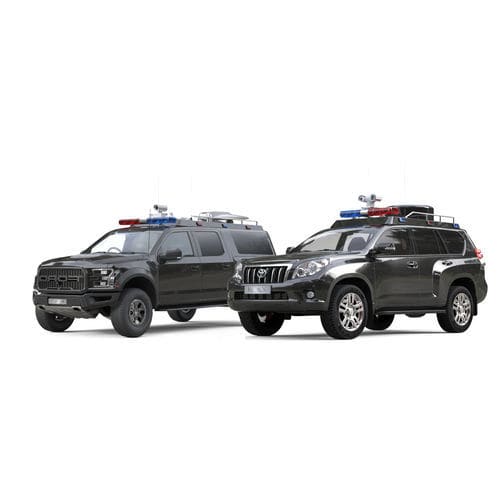

With strong mobility and low costs, the small-sized communication command vehicle provides basic communication and command functions. It is always ready for missions and applies to emergency response, daily patrol, and other tasks. HF Radio Working Frequency: 1.6MHz~30MHz; Frequency stability: 0.5ppm; Modulation mode*: USB、LSB、CW、AM; Channel capacity: 1000; It can be configured with two types of products, manpack (20W output power) and vehicle-mounted (125W output power), with whip antenna or NVIS antenna, the communication distance can reach 1000 kilometers. Satellite Ku or Ka frequency band Equivalent diameter of communication-in-motion antenna: 0.6 m to 0.9 m Diameter of communication-in-immobility antenna: 1.0 m to 1.2m Transmission rate: 2 Mbps to 8 Mbps HD 1080P image transmission supported Broadband Trunking System Optional 1.4 GHz/1.8 GHz/other frequencies (customizable) Adjustable bandwidth: 20 MHz/15 MHz/10 MHz/5 MHz Tx power: 2 x 40 W Maximum number of online broadband terminals: 600
