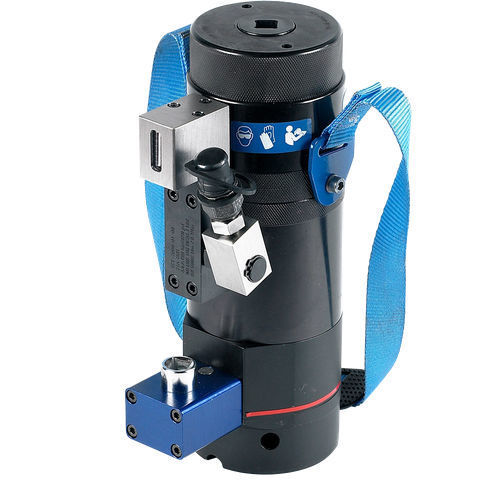

Hydraulic bolt tensioner Wind Multi-Stage

for wind turbinemulti-stage

Key Features:
• Stacked load cell design — achieves high bolt loads within an ultra-slim radial profile
• Gearbox and geared socket for easy hand ratchet nut advancement — no power tools required for nut engagement
• Purpose-designed for wind turbines with extremely tight radial clearance where traditional tensioners cannot fit
• Handles higher bolt loads than single-stage designs for the most demanding wind turbine joints
• Manufacturer-specific designs available: Acciona, Clipper, Gamesa, Mitsubishi, Siemens, Vestas, and more
• Reliable performance in harsh field conditions — weather extremes, remote sites, and tower-top environments
• Complete spring-return system for rapid, repeatable tensioning cycles

Description:

Some wind turbine bolted joints leave almost no room to work. Tight radial clearances — where even a compact single-stage tensioner cannot fit — are precisely where the HYTORC Wind Multi-Stage Tensioner demonstrates its engineering advantage. Designed around a proprietary stacked load cell architecture, this slim, high-load hydraulic bolt tensioner delivers the clamping force required by the most demanding wind turbine joints while fitting into spaces that defeat every conventional bolting tool.

The multi-stage stacked design is the defining innovation: by distributing the hydraulic load across multiple stacked stages within a minimal radial footprint, this tensioner achieves greater bolt loads than single-stage alternatives without any increase in profile width. The result is the precise radially-confined solution that heavily clearance-restricted wind turbine applications demand — a capability that general-purpose tensioner designs simply cannot provide.

An integrated gearbox and geared socket allows technicians to advance the nut with a standard hand ratchet — a critical operational advantage when working at tower height where minimising the number of power tools in use reduces both the weight carried up and the complexity of the operation. Once the nut is fully run down, hydraulic pressure from the HYTORC tensioning pump delivers precise, measured bolt elongation to the target load.

With manufacturer-specific variants engineered for Acciona, Clipper, Gamesa, Mitsubishi, Siemens, Vestas, and other major turbine OEMs, the HYTORC Wind Multi-Stage Tensioner slots directly into existing maintenance procedures without any improvised adaptation. For wind farm operators, service contractors, and OEM service teams who need the most capable hydraulic bolt tensioner for confined-clearance wind turbine applications, this is the definitive solution.
