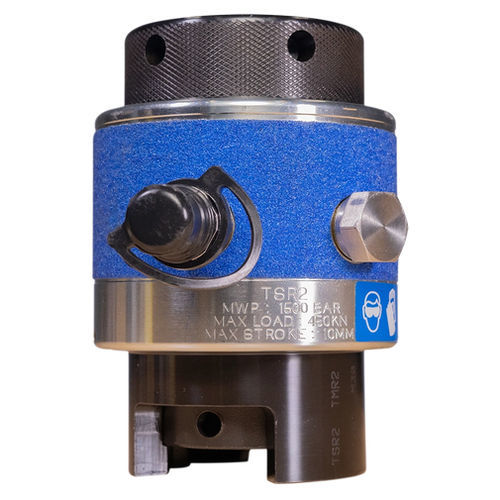

Hydraulic bolt tensioner Topside Spring Return

Key Features:
• Auto-return spring mechanism eliminates manual piston resetting — faster cycle times on every bolt
• ANSI/ASME flange compatible with interchangeable adapter kits for broad bolt size coverage
• Built-in relief valve prevents overstroking — protects equipment and operators
• High-quality steel with advanced surface treatments for performance in harsh, corrosive environments
• Fully customisable to specific application requirements upon request
• Dramatically reduces manual effort and repetitive-strain risk across high bolt-count flange work
• Compatible with the full HYTORC tensioning pump range

Overview:
Every second counts during a planned maintenance outage or emergency shutdown. The HYTORC Topside Spring Return Tensioner eliminates one of the most time-consuming steps in the bolt tensioning process — manual piston resetting — through a precision-engineered auto-return spring mechanism. The result is faster cycle times, significantly reduced operator fatigue, and a measurable improvement in bolting productivity on high bolt-count flanges.

Where conventional hydraulic bolt tensioners require manual intervention to reset the piston between each cycle, the HYTORC Spring Return design retracts automatically the moment hydraulic pressure is released. On a 60-bolt turbine flange or a large-bore pipeline connection, that difference compounds into hours saved per job — translating directly to reduced labour costs and shorter critical path durations on outages where every hour offline carries a financial consequence.

Safety is built in from the ground up. The integrated relief valve prevents overstroking under any operating condition, protecting both your precision bolting equipment and your workforce from the hazards associated with over-tensioned fasteners. High-quality steel construction combined with advanced surface treatment processes delivers exceptional resistance to corrosion, mechanical wear, and the thermal cycling common in power generation and refinery environments.

Like all HYTORC topside tensioners, the Spring Return is designed for ANSI/ASME flange compatibility and ships with interchangeable adapter kits covering an extensive range of bolt sizes. Custom configurations are available for non-standard applications. Pair it with the HYTORC Pneumatic Tensioning Pump or HY-T Electric Tensioning Pump for a fully integrated, high-performance controlled bolting system engineered to maximise uptime and joint integrity.
