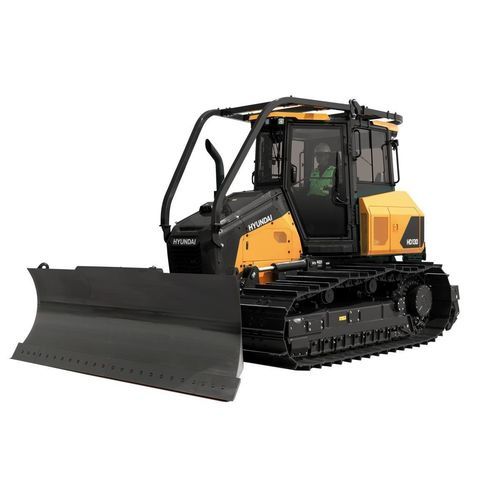

Crawler bulldozer HD130 LGP

for construction

Overview
Hyundai dozers are known for fast cycle speeds, impressive hydraulic power and precision control. Adding to that success formula, the Hyundai HD series features eco-friendly, high-performance engines that meet Tier 4 Final emission requirements. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours. HX series is designed with the operator in mind. A key feature of the new operator’s cab in each HD series dozer is the convenient clustering of electronic controls and monitoring functions, resulting in improved operator accuracy and efficiency.

Reliability & Durability

• Reliability: Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The HD 130 is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.
• Durability: Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

Key Specifications

• Rated Power: 157 hp @ 2,200 rpm / 117 kW @ 2,200 rpm
• Operating Weight (LGP): 33,730 lbs / 15,300 kg
• Maximum Traction Force (ISO): 48,501 lbf / 22,000 kgf

Specifications Table
ENGINE MODEL | Perkins 1204J
NET POWER | 157 hp @ 2200 rpm
OPERATING WEIGHT | 33,730 lb.
TRAVEL SPEED | 5.6 mph
GROUND PRESSURE | 4.7 psi
BLADE DIGGING DEPTH | 1' 4"
MAXIMUM TRACTION FORCE | 48,401 lbf
MAXIMUM GRADE | 70% / 35 degrees

Caractéristiques / spécifications techniques

• Model: HD130 LGP
• Brand: Hyundai
• Engine Model: Perkins 1204J
• Net Power: 157 hp @ 2200 rpm
• Operating Weight: 33,730 lb (15,300 kg)
• Travel Speed: 5.6 mph
• Ground Pressure: 4.7 psi
• Blade Digging Depth: 1' 4"
• Maximum Traction Force: 48,401 lbf (22,000 kgf)
• Maximum Grade: 70% / 35 degrees
