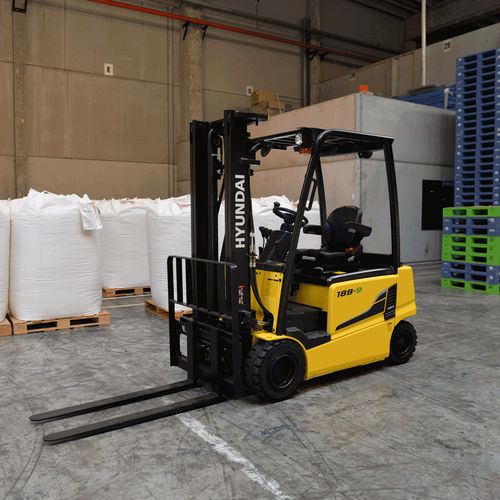

Electric forklift truck 16B-9

ride-onhandling4-wheel

Overview Introducing the Hyundai 16 and 20B-9 electric forklift. The compact Hyundai 9-Series Electric Forklifts for indoor operation delivers class-leading manoeuvrability working in confined aisles paired to a low cost of operation.

Key specifications (highlights) Load Capacity: 1600 / 2000 kg. Load Center Distance: 500 mm. Lifting Heights: 2700-7000 mm. Battery Capacity options: 48/510 V/Ah, 48/585 V/Ah.

Features & benefits

• Dual drive motor system: two separately controlled drive motors prevent wheel spin when left and right wheel grip differs and deliver strong drive performance even on dirty surfaces.
• Dual MiCOM ZAPI controller: IP65 protected AC controller with two-way signal/fault processing, optimized drive controller capacity and left/right split structure to reduce energy consumption.
• Ergonomically designed workspace: generous foot space, intuitive pedal arrangement, low step-on height, easy-to-operate levers and pedals, adjustable handle, suspension seat and large multi-functional cluster dashboard for operator comfort.
• LCD Color Monitor: 4.3-inch graphic smart display showing speed, travel direction, operating hours; load indicator displays load weight; three selectable performance modes; multilanguage support (up to 11 languages).
• Curve Control: limits travel speed based on turning radius for smooth, precise turns.
• Anti Roll Back System: prevents rollback on ramps and provides exceptional ramp starting capability.
• Automatic speed control, operator sensing system, mast and tilt interlock to protect truck, load and driver during operation.

Application & performance This range of 4-wheel electric forklifts is designed for indoor warehouse operations where compact dimensions and manoeuvrability are required. Powered by a reliable 48V AC power system, the trucks offer outstanding performance across a range of applications and act as a versatile alternative to diesel and gas forklifts.

Additional notes Strong chassis construction ensures durability and stability for confident handling operations. The platform allows flexible customization of hydraulic and traction performance to match specific applications.

Turning radius (table) Turning Radius: 1540 / 1630 mm

Caractéristiques / Spécifications techniques

• Series / model family: 9-Series
• Typical model references mentioned: 16, 18B-9, 20B-9
• Load capacity: 1600 kg, 2000 kg
• Load center distance: 500 mm
• Lifting heights: 2700 mm – 7000 mm
• Battery capacity options: 48/510 V/Ah, 48/585 V/Ah
• Battery system voltage: 48 V (AC drive system)
• Turning radius: 1540 mm / 1630 mm
• Drive system: dual drive motor system (two separately controlled drive motors)
• Controller: Dual MiCOM ZAPI AC controller, IP65
• Operator interface: 4.3-inch LCD colour monitor, load indicator, selectable performance modes, multilanguage support (up to 11)
• Safety features: automatic speed control, operator sensing system, mast and tilt interlock, anti roll-back system
• Performance feature: Curve Control (speed limited by turning radius)
• Design focus: ergonomic operator workspace, suspension seat, adjustable controls
