Electric forklift truck 40B-9
ride-on4-wheel

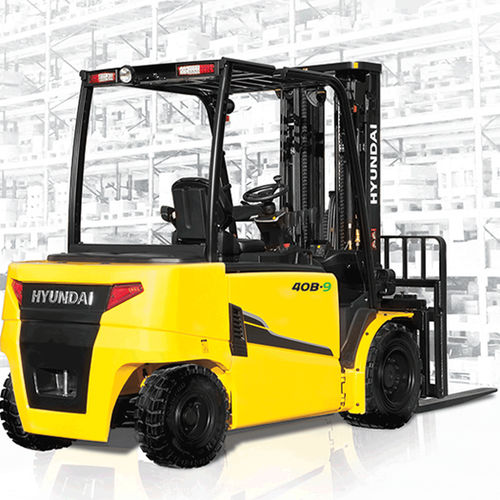

Electric forklift truck - 40B-9 - HYUNDAI HEAYY INDUSTRIES - ride-on / 4-wheel
Electric forklift truck - 40B-9 - HYUNDAI HEAYY INDUSTRIES - ride-on / 4-wheel
Electric forklift truck - 40B-9 - HYUNDAI HEAYY INDUSTRIES - ride-on / 4-wheel - image - 2
Electric forklift truck - 40B-9 - HYUNDAI HEAYY INDUSTRIES - ride-on / 4-wheel - image - 3
Electric forklift truck - 40B-9 - HYUNDAI HEAYY INDUSTRIES - ride-on / 4-wheel - image - 4
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Other characteristics
4-wheel
Carrying capacity

4,000 kg, 4,500 kg, 4,990 kg
(8,818.5 lb, 9,920.8 lb, 11,001.1 lb)

Lifting height

Min.: 2,900 mm
(114.17 in)

Max.: 6,000 mm
(236.22 in)

Overall width

1,376 mm, 1,424 mm
(54.2 in, 56.1 in)

Overall length

4,125 mm, 4,260 mm
(162.4 in, 167.7 in)

Load center distance

500 mm
(19.7 in)

Axle loading with maximum load front

9,548 kg, 10,456 kg, 11,332 kg
(21,049.7 lb, 23,051.5 lb, 24,982.8 lb)

Axle loading with maximum load rear

1,307 kg, 1,389 kg, 1,463 kg
(2,881.4 lb, 3,062.2 lb, 3,225.4 lb)

Axle loading without load front

3,504 kg, 3,656 kg, 3,779 kg
(7,725 lb, 8,060.1 lb, 8,331.3 lb)

Axle loading without load rear

3,351 kg, 3,689 kg, 4,026 kg
(7,387.7 lb, 8,132.9 lb, 8,875.8 lb)

Seat height

1,285 mm
(50.6 in)

Tow couplig height

460 mm
(18.1 in)

Ground clearance under mast with load

160 mm
(6.3 in)

Ground clearance at center of wheelbase with load

150 mm
(5.9 in)

Turning circle radius

2,670 mm, 2,705 mm
(105.1 in, 106.5 in)

Description

Overview The 80V 9-series 4-wheel electric counterbalance forklifts (models 40B-9, 45B-9, 50B-9) deliver high load capacity with excellent maneuverability and low operating cost. A customizable Grammer seat and an ergonomically designed operator area support long-shift productivity while the AC powertrain with ACT balances performance and efficiency.

Key specifications
  • Load capacity: 4000 / 4500 / 4990 kg
  • Load center: 500 mm
  • Lifting height range: 2900–6000 mm
  • Battery: 80V / 700Ah


Features
  • Dual drive motor system: two independently controlled drive motors to prevent wheel spin and maintain traction on uneven or dirty surfaces.
  • ACT (Active Control Technology): AC power system optimising motor efficiency and drive response.
  • 4.3" LCD color monitor: graphic display of speed, direction, operating hours and load indicator; three selectable performance modes; up to 11 languages.
  • Grammer seat: adjustable ergonomic seat with adjustable armrest and suspension to reduce operator fatigue.
  • Ergonomic operator workspace: easy-to-operate levers and pedals, adjustable handle and large multifunction dashboard.
  • Anti Roll Back system: prevents rollback on ramps and improves ramp-start capability.
  • Operator Presence Sensing System (OPSS): disables lift/tilt hydraulics and travel when operator is not seated.


Technical details Turning radius: 2670 / 2670 / 2705 mm

Characteristics / technical specifications
  • Series/models: 9-Series — 40B-9, 45B-9, 50B-9
  • Rated load capacities: 4000, 4500, 4990 kg
  • Load center distance: 500 mm
  • Lifting heights: 2900–6000 mm
  • Turning radius: 2670 / 2670 / 2705 mm
  • Battery system: 80V electrical system (example capacity 700Ah)
  • Drive: dual drive motor system (two independently controlled drive motors)
  • Powertrain: AC motors with ACT (Active Control Technology)
  • Display: 4.3" LCD colour monitor with load indicator and three performance modes
  • Seat: Grammer adjustable ergonomic seat with armrest and suspension
  • Safety: Anti Roll Back; Operator Presence Sensing System (OPSS)
  • Application: high-capacity 4-wheel electric counterbalance forklifts for intensive industrial handling
