Diesel forklift truck 35D-9VBride-onhandling
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- handling
- Carrying capacity
3,500 kg, 4,000 kg, 4,500 kg, 4,990 kg
(7,716.2 lb, 8,818.5 lb, 9,920.8 lb, 11,001.1 lb)- Lifting height
2,930 mm, 3,020 mm
(115.35 in, 118.9 in)- Overall width
1,370 mm, 1,418 mm
(53.9 in, 55.8 in)- Overall length
4,219 mm, 4,284 mm, 4,504 mm, 4,547 mm
(166.1 in, 168.7 in, 177.3 in, 179 in)- Load center distance
600 mm
(23.6 in)- Axle loading with maximum load front
Max.: 10,749 kg
(23,697.5 lb)Min.: 8,202 kg
(18,082.3 lb)- Axle loading with maximum load rear
Max.: 1,515 kg
(3,340 lb)Min.: 1,149 kg
(2,533.1 lb)- Axle loading without load front
Max.: 2,949 kg
(6,501.4 lb)Min.: 2,700 kg
(5,952.5 lb)- Axle loading without load rear
Max.: 4,135 kg
(9,116.1 lb)Min.: 3,151 kg
(6,946.8 lb)- Height to top of overhead guard
2,340 mm, 2,350 mm
(92.1 in, 92.5 in)- Seat height
1,304 mm, 1,316 mm
(51.3 in, 51.8 in)- Tow couplig height
360 mm, 372 mm
(14.2 in, 14.6 in)- Length to fork face
3,149 mm
(124 in)- Turning circle radius
2,895 mm, 2,944 mm, 3,038 mm, 3,081 mm
(114 in, 115.9 in, 119.6 in, 121.3 in)- Rated output
54.4 kW
(74 hp)
Description
Overview
Hyundai's new Stage V 9VB-series represent a smart generation of material handling diesel forklifts, complying with European Stage V emission levels while delivering improved fuel efficiency and operator performance.
Key features
Technical details (summary)
Load Capacity: 3500 / 4000 / 4500 / 5000 kg
Load Center Distance: 600 mm
Lifting Heights: 2900 - 6500 mm
Turning Radius: 2,895 / 2,944 / 3,038 / 3,081 mm
Engine Power: 54.4 kW (table) / approx. 55 kW (text)
Engine Model: HMC D4CC
Caractéristiques / spécifications techniques
Hyundai's new Stage V 9VB-series represent a smart generation of material handling diesel forklifts, complying with European Stage V emission levels while delivering improved fuel efficiency and operator performance.
Key features
- Groundbreaking Economic Engine: 2.9L HMC D4CC diesel engine delivering around 54.4–55 kW with up to 33% increased fuel efficiency.
- Rexroth variable load-sensing piston pump paired with a Buchholz MCV to reduce power take-off and fuel consumption.
- Integrated Hyundai powertrain: transmission and drive axle developed by Hyundai Core Motion for enhanced durability and productivity.
- Outstanding ergonomics: spacious cabin available in 1-door or 2-door (split type) versions; premium Grammer seat as standard; integrated air conditioning and/or heater in the headliner; controls positioned within easy reach.
- Full control cluster: enhanced instrument cluster for machine setup, diagnostics and maintenance; settings can be entered directly via the cluster.
- Best standard warranty: stage V models come with industry-standard warranties and an extended powertrain standard warranty (powertrain hours extended by 33% from 3,000 to 4,000 hours; conditions apply).
Technical details (summary)
Load Capacity: 3500 / 4000 / 4500 / 5000 kg
Load Center Distance: 600 mm
Lifting Heights: 2900 - 6500 mm
Turning Radius: 2,895 / 2,944 / 3,038 / 3,081 mm
Engine Power: 54.4 kW (table) / approx. 55 kW (text)
Engine Model: HMC D4CC
Caractéristiques / spécifications techniques
- Series / Model: 9VB Series
- Load capacity options: 3,500 kg; 4,000 kg; 4,500 kg; 5,000 kg
- Load center distance: 600 mm
- Lifting height range: 2,900 mm – 6,500 mm
- Turning radius options: 2,895 mm; 2,944 mm; 3,038 mm; 3,081 mm
- Engine model: HMC D4CC
- Engine displacement: 2.9 L (text reference)
- Engine power: 54.4 kW (spec table) / ~55 kW (text)
- Hydraulics: Rexroth variable load-sensing piston pump with Buchholz MCV (mechanical or fingertip options)
- Powertrain: Integrated Hyundai powertrain; transmission and drive axle developed by Hyundai Core Motion
- Fuel-efficiency: up to 33% increased fuel efficiency (compared to previous reference)
- Cabin: 1-door or 2-door split type; premium Grammer seat standard; integrated air conditioning/heater in headliner
- Operator controls: enhanced instrument cluster allowing direct entry of settings, diagnostics and maintenance functions
- Warranty: industry-standard warranties for Stage V models; powertrain warranty extended to 4,000 hours (33% extension; conditions apply)
Catalogs
No catalogs are available for this product.
See all of HYUNDAI HEAYY INDUSTRIES‘s catalogsOther HYUNDAI HEAYY INDUSTRIES products

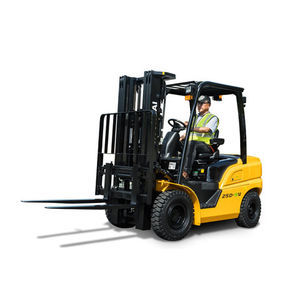

Diesel Forklift Trucks
