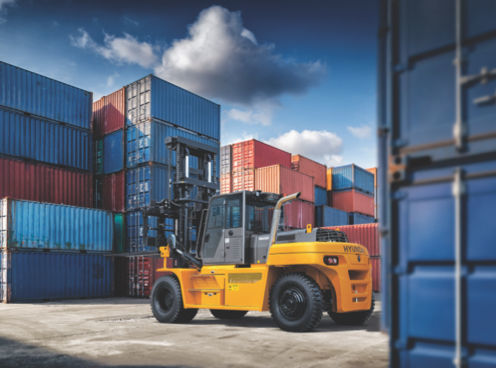

Diesel engine forklift 9V

ride-onharborindustrial

Summary

The 9V-Series heavy diesel forklifts (models 120D-9V, 130D-9V, 160D-9V, 160D-9LV) provide 12–16 tonne load capacity with 600 mm and 1200 mm load centre options. Designed for ports, heavy logistics and industrial lifting, these Stage V machines combine fuel-efficient powertrains, enhanced operator comfort and simplified maintenance for high-utilisation fleets.

Comfort and operator control

• Standard premium Grammer seat for full-shift comfort.
• One-piece curved front windscreen and glass side doors for improved all-round visibility.
• Cab noise reduced by approximately 5.9 dB for reduced operator fatigue.
• Large colour monitor with intuitive icons for quick status checks.
• Smaller steering wheel diameter and repositioned pedals to minimise shoulder and leg fatigue.

Efficiency and performance

• Stage V Cummins diesel engines: B4.5 for 120D-9V/130D-9V and B6.7 for 160D-9V/160D-9LV for improved fuel economy.
• New ZF transmission for faster response and increased reliability.
• Load-sensing hydraulic system with variable displacement pump and load-sensing MCV to reduce fuel consumption.
• Optional triple separate (TS) mast for better visibility during overhead work.
• Robust drive axle engineered for high-load applications.

Safety features

• 3-stage TS mast placing primary cylinder to the sides to maximise forward visibility.
• Automatic parking brake to reduce accidents from human error.
• Seat belt interlock and OPSS (Operator Presence Sensing System) to restrict functions when operator is absent.
• Programmable speed limiter and machine inclination warning for stability management.
• Passcode-protected start-up to prevent unauthorised use.

Maintenance and serviceability

• Large counterweight opening for easy inspection or replacement of aftertreatment components.
• Auto-tilting cabin (up to 52°) for direct access to powertrain and hydraulic/electric systems.
• Centralised waterproof and dustproof fuse & relay box for durable electrical protection.
• Wing-type engine cover and upgraded instrument cluster for faster routine checks and diagnostics.

Highlights
Load capacity: 12,000 / 13,000 / 16,000 kg
Load center distance: 600 / 1200 mm
Lifting heights: 3,010 – 7,500 mm (model-dependent)

Technical specifications

• Series: 9V-Series
• Available models: 120D-9V, 130D-9V, 160D-9V, 160D-9LV
• Engines: Cummins B4.5 (120D-9V, 130D-9V), Cummins B6.7 (160D-9V, 160D-9LV) — Stage V
• Transmission: ZF transmission (new)
• Hydraulics: Load-sensing system with variable displacement pump and load-sensing MCV
• Cabin: next-generation cab, reduced noise (~‑5.9 dB), premium seat, enhanced visibility, colour monitor
• Safety: auto parking brake, seat belt interlock, OPSS, inclination warning, passcode start-up
• Maintenance: large counterweight opening, tilting cabin up to 52°, centralised waterproof/dustproof fuse & relay box
