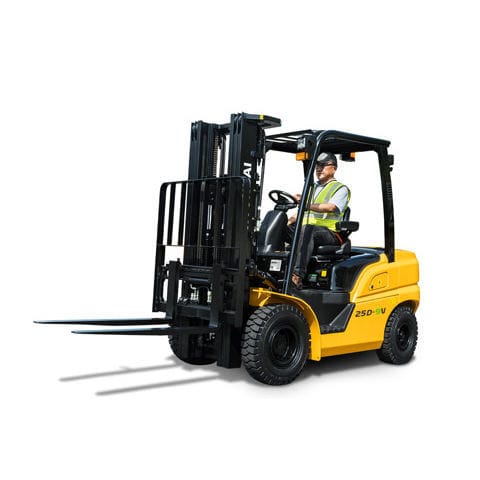

Diesel engine forklift 9V

ride-onfor materials handling

Overview
The 9V-Series Stage V diesel forklifts are a generation of material‑handling machines designed to meet and exceed EU Stage V emissions requirements. Offered in 2.5, 3.0 and 3.5 tonne capacities, the range pairs a 2.2 L HMC D4HB engine with an electronically controlled transmission and an integrated Hyundai powertrain for improved fuel efficiency, durability and uptime.

Key highlights

• Load capacities: 2500 / 3000 / 3500 kg
• Load center distance: 500 mm
• Lifting heights available: 3000 – 6000 mm
• Turning radius (depending on configuration): 2352 / 2427 / 2480 mm

Engine

• 2.2 L HMC D4HB diesel engine, approx. 47.8 kW, compliant with Stage V.
• Optimised combustion and aftertreatment for lower fuel consumption and emissions.
• Engine and aftertreatment service access designed to minimise downtime.

Transmission

• Electronically controlled transmission adjustable from the instrument panel for application‑specific tuning.
• Integrated Hyundai powertrain (transmission + drive axle) developed for durability and consistent performance.

Ergonomics & comfort

• Spacious cabin available in 1‑ or 2‑door configurations with improved visibility.
• Grammer seat as standard and ergonomically placed controls to reduce operator fatigue.
• Instrument cluster supports configuration, diagnostics and service scheduling without external tools; heating/air‑conditioning options available.

Technical details
Load capacity: 2500 / 3000 / 3500 kg
Load center distance: 500 mm
Lifting heights: 3000 - 6000 mm
Turning radius: 2352 / 2427 / 2480 mm
Engine power: 47.8 kW
Engine model: HMC D4HB

Characteristics / technical specifications

• Series / models: 9V‑Series
• Fuel type: diesel, Stage V compliant
• Engine displacement: 2.2 L (HMC D4HB)
• Engine power: ≈47.8 kW
• Load capacities: 2500 / 3000 / 3500 kg
• Load center: 500 mm
• Lifting heights: 3000 – 6000 mm
• Turning radius: 2352 / 2427 / 2480 mm
• Transmission: electronically controlled, adjustable from instrument panel
• Powertrain: integrated Hyundai transmission and drive axle
• Cabin: 1‑ or 2‑door options, Grammer seat standard, HVAC available
• Warranty: extended powertrain standard warranty up to 4000 hours (subject to conditions)
