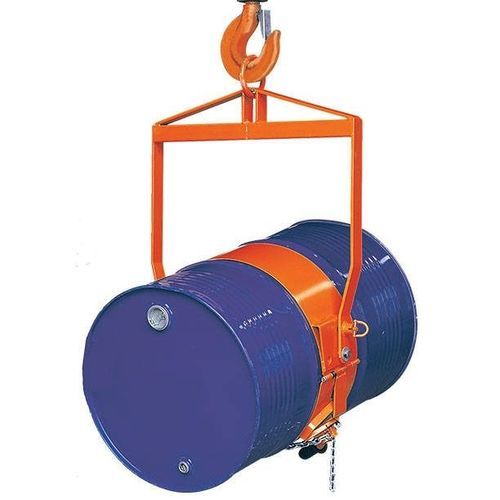

Manual drum lifter LM800

hand crankchain slingwith gripping tool

Product overview
Vertical drum lifters LM800 and LG800 are designed for safe, single-operator vertical and horizontal handling and dispensing of closed-head steel drums (suitable for specified fiber drums). The units attach to an overhead hoist or crane; the saddle secures around the drum for lifting, positioning and controlled dispensing, reducing spillage and saving handling time.

LM800 Drum lifter/dispenser

• Designed for vertical and horizontal handling
• Manual operation for single-operator use
• Load capacity: 360 kg (manual use)
• For drum diameter Ø570 mm
• Option: Strap for plastic drums (Reference: LG800-SANGLE)

LG800 Drum lifter/dispenser

• Drum lifter/dispenser with chain mechanism
• Load capacity: 360 kg
• Suitable for vertical and horizontal handling
• 360° rotation system for precise positioning
• For drum diameter Ø570 mm

Model table
i-LIFT NO. | Model No. | Capacity kg(lb.) | Drum Size Liters(gallon) | Drum Type | Number of Drums | Net Weight kg(lb.)
— | LM800 | 360 (792) | 210 (55) | Closed-Head Steel Drum | One | 20 (44)
— | LG800 | 360 (792) | 210 (55) | Closed-Head Steel Drum | One | 38 (84)

Technical specifications

• Series: LM/LG
• Models: LM800, LG800
• Load capacity: 360 kg (792 lb.)
• Suitable drum diameter: Ø570 mm
• Drum size: 210 liters (55 gallon)
• Drum type: Closed-head steel drum (suitable for fiber drums where noted)
• Handling orientation: Vertical and horizontal
• Rotation: LG800 features a 360° rotation system
• Operation: Manual (LM800) / chain type with rotation (LG800)
• Net weight: LM800 = 20 kg (44 lb.), LG800 = 38 kg (84 lb.)
• Option: Strap for plastic drums (Reference: LG800-SANGLE)
