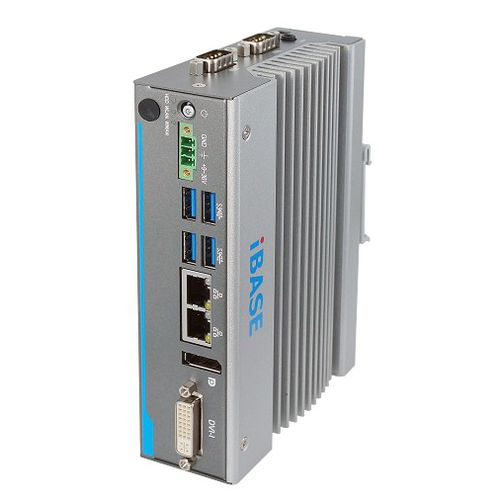

Embedded PC AGS100
Intel® Atom x7-E3950Intel® Atom x5-E3930DisplayPort

embedded PC
embedded PC
embedded PC
embedded PC
embedded PC
Add to favorites
Compare this product


Characteristics

Type
embedded
Processor
Intel® Atom x7-E3950, Intel® Atom x5-E3930
Ports
DisplayPort, USB 3.0
Field
industrial, automation
Other characteristics
fanless, wireless, DIN rail, rugged, MIL-STD-810G

Description

The Intel® based AGS Series intelligent IoT gateway system aimed at industrial control and factory automation applications. It can be used as an IoT gateway serving as a platform to connect devices and securely transfer data to clouds, or as a Machine-to-Machine (M2M) gateway providing interconnection of devices to enhance workflow, including wired and wireless, in various industrial environments. The AGS100 can be powered by Intel® Atom™ processor E3950/ E3930 with extended operating temperature (-40°C to 70°C), Intel® Pentium® N4200, and Celeron® N3350 processors (-20°C to 60°C). It supports 4GB DDR3L-1866 DO-DIMM, a 64GB MLC industrial-grade mSATA SSD, dual display ports (DVI-I and DisplayPort), 4x USB 3.0, 2x GbE, 2x COM, a DC-in terminal block for 9V~36V input and over/under/reverse voltage protection. The rugged aluminum and steel chassis of the AGS100 enhances heat dissipation and features easy expansion with a full-size Mini PCI-E socket, a 2230 M.2 E-Key socket for WLAN & BT, a 3042 M.2 B-Key socket for WWAN & SSD, an mSATA socket (Mini PCI-E), and a 2242 M.2 B-Key socket for mSATA SSD. Aside from a wide operating temperature range, its shock and vibration tolerance standards (IEC 60068-2-64 / MIL-STD-810G) the durability needed to withstand harsh environments. Measuring 160mm (W) x 110mm (D) x 44mm (H), it comes with both DIN-rail and wall mounting kits. The model AGS102 has additional two RS232 ports for COM3/COM4 and GPIO 4-in & 4-out multi-purpose interface that allows connection to a variety of one- or two-wire devices for I/O, security and data storage purposes.
