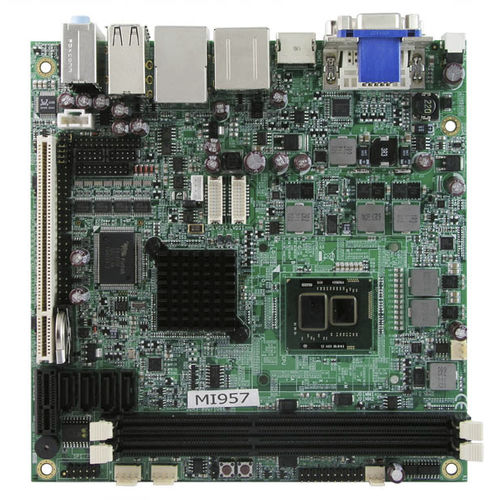

Mini-ITX motherboard MI957

Intel® Core™ i seriesIntel QM57DDR3 SDRAM

The Intel® Core™ i7-610E processor-based MI957 Mini-ITX motherboard supports the mobile Intel® QM57 Express Chipset. MI957 is designed for applications requiring high-level processing and graphics performance with a long product life such as those in digital signage, gaming, POS, kiosk and multimedia sectors. With the 2.53GHz Core™ i7-610E integrated graphics, the MI957 platform offers dual independent display and comes with a wide array of display outputs including CRT, DVI-D, HDMI, 18/24-bit LVDS and Display Port. Integrated graphics support includes features such as DirectX 10, OpenGL 2.1, and Intel® Dynamic Video Memory Technology (Intel® DVMT 5.0). With two DIMM slots, it supports a maximum of 8GB of ECC DDR3 memory. Aside from the video ports at the board’s edge, the MI957 motherboard has a single Gigabit Ethernet port, audio and eight USB ports onboard. Other connectivity and expansion features include four COM ports, four SATA II (RAID 0,1) ports, a Mini PCI-E, a PCI-E and a PCI slot. MI957 also comes available with the Intel® Core™ i3-330E 2.13GHz processor.
