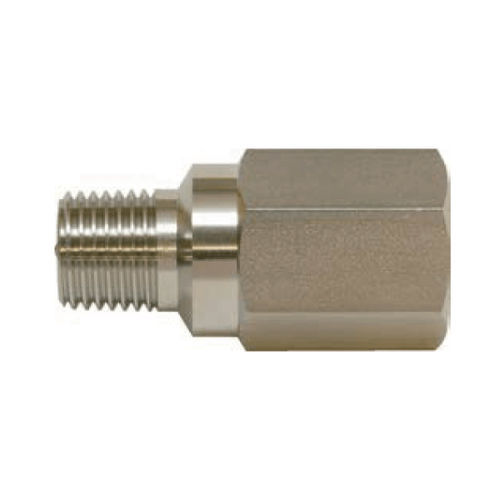

Gas pressure relief valve RL

for liquidsBSPTlow-pressure

Product Overview

• High-precision cracking performance with reliable sealing
• Designed for collecting drainage/exhaust downstream of relief via OUT piping
• Wide range of pipe sizes for flexible integration
• Straight IN/OUT configuration for simple installation and slim piping
• Set pressure adjusted at factory for plug-and-play delivery

Description
Operation fluid: Gases or liquids that do not corrode wetted parts
Pipe size: 1/4"～1-1/4" (R(IN) x Rc(OUT))
Proof pressure: 1.62 MPa
Set pressure: 3～1080 kPa ※For 1/4": 3 to 970 kPa. ※3～29 kPa available as an option.
Body material: Brass / SUS316
Seal material: Fluororubber FKM (standard)
Remarks: When set pressure is under 5 kPa, OUT port direction is upward only.

Dimension / Material
Dimension table (A / HEX): 1/4" — A: 41.0 mm / HEX: 19.0 mm; 3/8" — A: 53.0 mm / HEX: 22.0 mm; 1/2" — A: 60.0 mm / HEX: 27.0 mm; 3/4" — A: 69.0 mm / HEX: 32.0 mm; 1" — A: 90.0 mm / HEX: 38.0 mm; 1"-1/4 — A: 115.0 mm / HEX: 50.0 mm
Material table (No. → Part → Material): ① Body → Brass (Brass[B]) / SUS316 (Stainless[T]); ② Nut → SUS316L; ③ Guide → Brass or Stainless → SUS316 or SUS316L; ④ Spring → SUS304 or SUS316; ⑤ Poppet → Brass / SUS316; ⑥ Special Seal → FKM[V] (standard)

Flow characteristics
Flow characteristic chart/image available on the product page.

Ordering information
Ordering diagram/image available on the product page.

Applications

• General machinery: milling machines, CNC lathes, machining centers, laser, waterjet, boilers, various industrial equipment
• Industrial furnaces: heating furnaces, vacuum furnaces, combustion equipment, temperature chambers
• Medical devices: endoscope cleaners, oxygen concentrators, anesthetic equipment, blood analyzers, sterilizers
• Analytical & measurement: gas analyzers, detectors, environmental monitoring instruments
• Energy: fuel cells, secondary batteries, gas engines, generators
• Water/liquid processing: pure water systems, RO desalination, ultrasonic cleaners, chillers
• Gas generation equipment: compressors, gas generators, small pressure vessels
• Other: glove boxes, forklifts, car wash equipment, oxygen capsules

Technical specifications

• Product name: Relief valve RL Series
• Type: Inline, low-pressure (suitable for gases and liquids that do not corrode wetted parts)
• Pipe size: 1/4"～1-1/4" (R(IN) x Rc(OUT))
• Proof pressure: 1.62 MPa
• Set pressure: 3～1080 kPa (1/4" up to 970 kPa; 3～29 kPa optional)
• Body material: Brass / SUS316
• Seal material: Fluororubber FKM (standard)
• Representative dimensions (A / HEX) as listed above
• Remark: For set pressure below 5 kPa, OUT port direction is limited to upward
