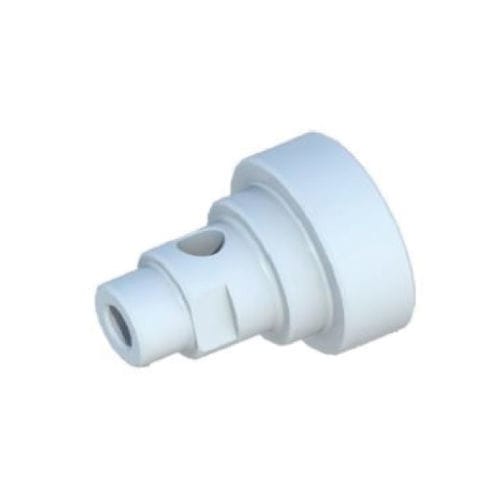

Gas pressure relief valve RSP

airBSPTlow-pressure

Features

• Designed for use from atmospheric pressure down to low (micro) pressure ranges
• Stable repeatability of sealing performance thanks to a special diaphragm structure
• Ideal for pressure control in micro-pressure environment equipment and pneumatic circuits

Product details
Operation fluid: Clean air or inert gas
Pipe size: 2-way Rc1/4
Proof pressure: 100 kPa
Set pressure: 1.0–5.0 kPa
Operation temperature: 5–60 ℃
Body material: POM (Polyacetal)
Wetted parts: POM, SUS304, EPDM, FKM
Remarks: Cracking pressure and resealing pressure are affected by mounting orientation. For changes of mounting orientation after delivery, the product must be returned for readjustment at our facility.

Dimension / Material
Material table:
No. ① Body — POM
No. ② Bonnet — POM
No. ③ Stem — SUS304
No. ④ Retaining ring — SUS304
Notes: ※This valve shall not be used as a directional control (check) valve. ※Pay attention to installation orientation when piping. ※The connection part (body) is resin; beware of leaks at screws and of stress on piping during installation. ※Set pressure is adjusted at our facility and cannot be changed by the customer after delivery.

Flow characteristics
Flow characteristic graphs and detailed curves are available in the product materials for the RSP Series.

Ordering information
Ordering drawings and codes are provided to select set pressures and available options; consult the ordering sheet for details.

Applications

• Industrial furnaces: general/heating/vacuum furnaces, combustion devices, incubators
• Medical equipment: blood analyzers, body fluid testing devices
• Analytical and measurement equipment: gas analyzers, component gas analysis, detectors, environmental measurement devices
• Others: glove boxes, micro-pressure environment equipment, and similar systems

Technical specifications

• Model family: RSP Series
• Operation fluid: Clean air or inert gas
• Pipe size: 2-way Rc1/4
• Proof pressure: 100 kPa
• Set pressure range: 1.0–5.0 kPa
• Operating temperature: 5–60 ℃
• Body material: POM (Polyacetal)
• Wetted parts: POM, SUS304, EPDM, FKM
• Material details: Body and bonnet — POM; Stem and retaining ring — SUS304
• Remarks: Cracking/resealing pressures depend on mounting orientation; orientation changes after delivery require return for readjustment; resin body—take care with screw seals and piping stress; set pressure preset at factory
