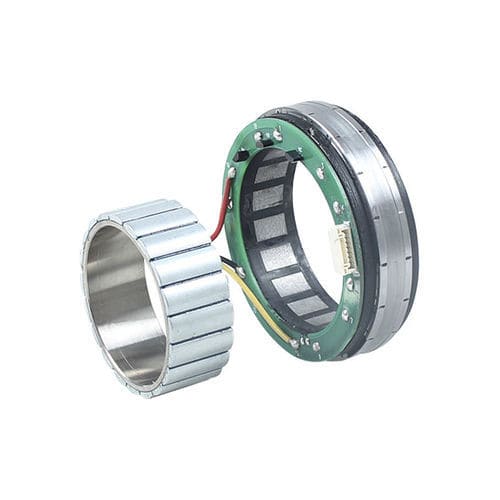

Asynchronous motor FB761 DC48 Vframeless
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, DC
- Voltage
- 48 V
- Configuration
- frameless
- Number of poles
- 16-pole
- Applications
- for medical equipment, for robotics
- Power
314 W
(0.43 hp)- Intensity
8.7 A
- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)
Description
• Designed for operation at DC voltages up to 48 volts
• Optional integrated Hall sensor without increasing length
• The windings are optimized for the speed and torque requirements of 3.5kg and 15 kg collaborative robot applications
• According to its design, the performance is best under the condition of not exceeding 85 ° C, but the performance can be maintained continuously and fully under the winding temperature of up to 155 ° C
• Provide a variety of standard thermal sensor options to match the most popular drive options in the cooperative robot market
