Water cleaning system VPM series

manualindustrialhigh-pressure

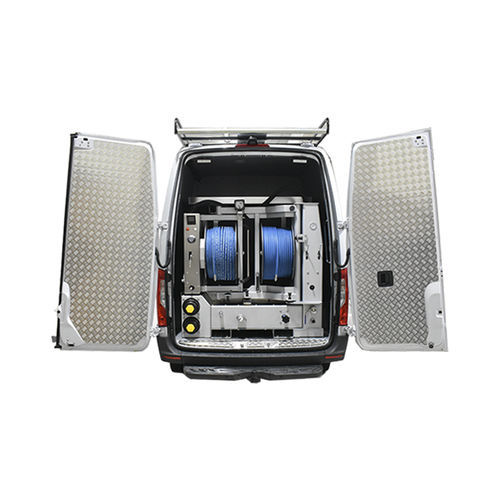

The compact PRO XXL Van Pack is built with a Stage V Diesel engine and powerful PRO-JETTING 48 - 84 LPM, 150 - 200 bar high pressure pump for cleaning pipelines up to 600mm. The clean and reliable Stage V Yanmar engine and stainless steel frame assure long lifetimes of this Van Pack. The powerful hydraulic reel is mounted on a swinging frame that allows 90 + 180 degrees of movement for easy positioning and effortless cleaning as far as 120 meters. The second reel is easy accessible for filling the water tank with 50 m of ¾” filling hose. Features Compact and lightweight Stainlesssteel frame Electric High Pressure Reel Protection : Overpressure protection - Filter/pre-pressure protection - Dry-run protection - Engine temperature protection - Engine oil protection - Hydraulics temperature protection Remote control: Engine START/STOP - Primary reel IN/OUT - Pump ON/OFF - Pressure (RPM) UP/DOWN - Emergency STOP SIR & CE certified Optional: Distance measurement - Ventury-injector system for filling tank - C70 Video nozzle Customization possible
