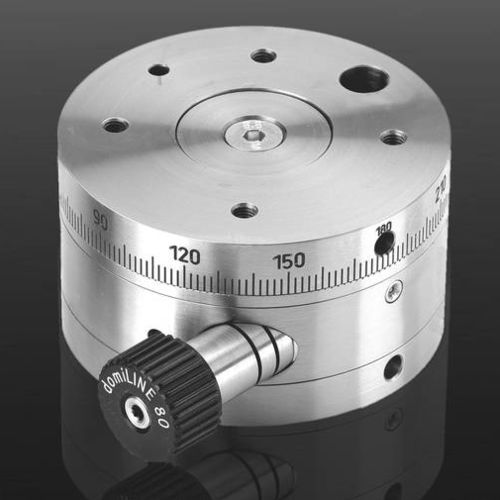

Rotary adjuster MDV series

manualprecision

Completely precise and thereby quickly to the goal! The rotary adjuster is equipped with a quick adjustment. For this, loosen the screw that is located at the side of the rotary plate. In the rotary plate of MDV 55 is a locking screw for the blockade, which you have to remove to activite the fast adjustment. The rotary unit is essentially made of stainless steel. The adjustment button is made of black anodised aluminium, the worm bearing of sinter bronze. quick adjustment clamping with high clamping force fine adjustment high reproducibility of the position Features max. radial torque on the plate: 5 Nm max. clamping force: 10 Nm main dimensions: Ø 55 mm weight: 610 g
